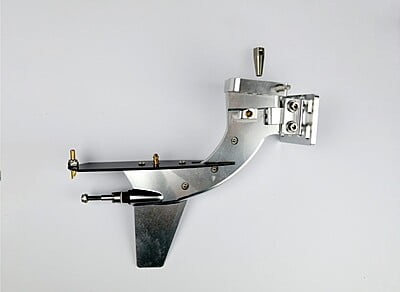

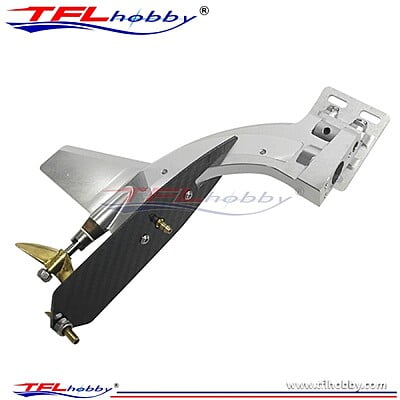

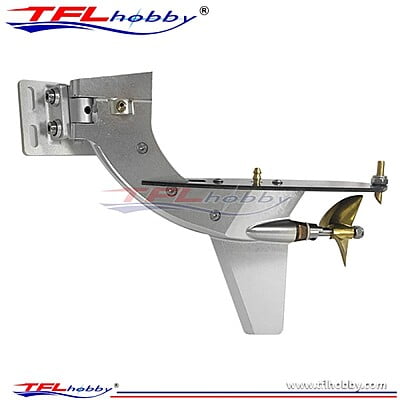

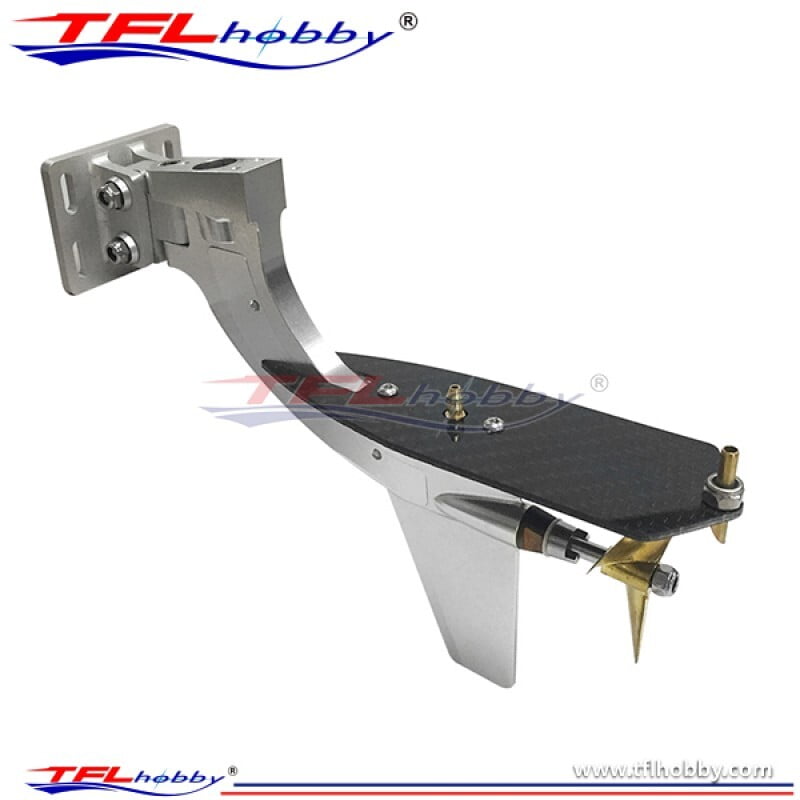

TFL Large Outboard Leg w/o Motor
£163.19
Suppled ready to fit your own compatible motor then you can grease up your shaft and bearings and nip the bolts up on building it onto your transom.
These Electric Race Outboard legs make a great conversion for your 3.5cc Nitro Engines such as (OS21XM, K&B 3.5cc, etc.)
Supplied with the beautiful Carbon Fibre Cavitation Plate.
N.B. Suitable for propellers up to 42mm.
Part Number
542B40 Weight (grams):
410 Choose Quantity
Tags:
Specifications
Specifications
- Motor IncludedNo
- Drive TypeFlex Shaft
- WatercooledYes
- Tilt-ableYes
- Adjustable HeightYes
- Propeller SuppliedTFL-B11*43
- Grease/Oil NipplesYes
Dimensions (Overall)
- Overall Height152mm
- Overall Width48mm
- Overall Length (From Transom)192mm
- Width Including Arms76.6mm
- Pushrod Distance Apart70mm
- Shaft Diameter4.76mm (3/16")
- Motor Mounting HolesM4/30mm & M3/25mm
Mounting Plate
- Width48mm
- Height40mm
- Mounting Bolt Holes4
- Bolt Diameter4mm (M4)
