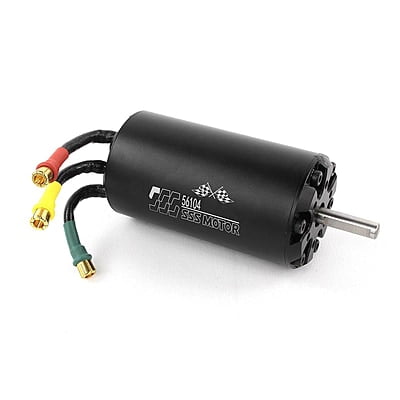

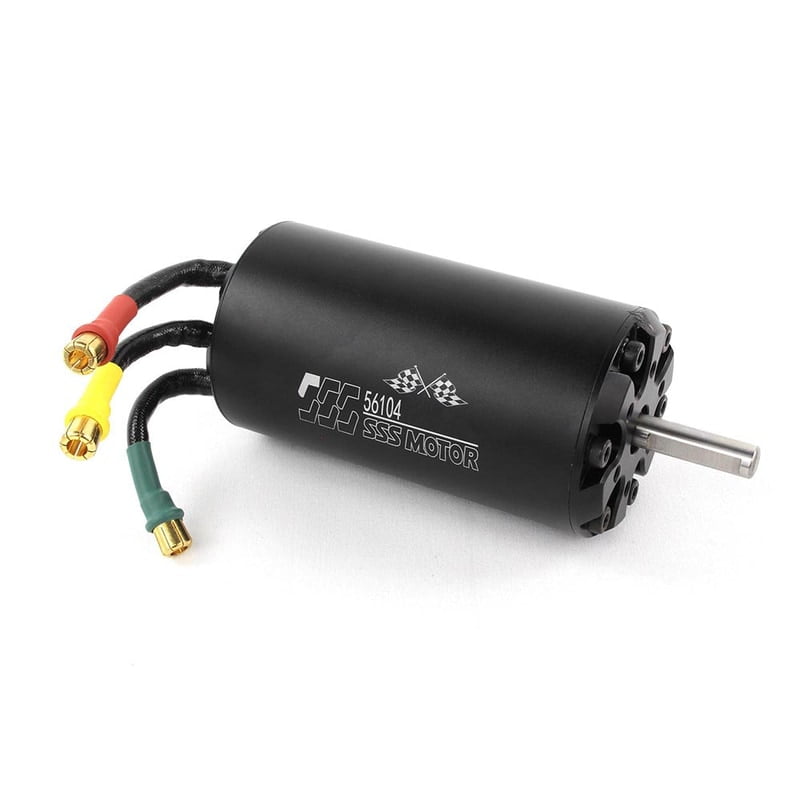

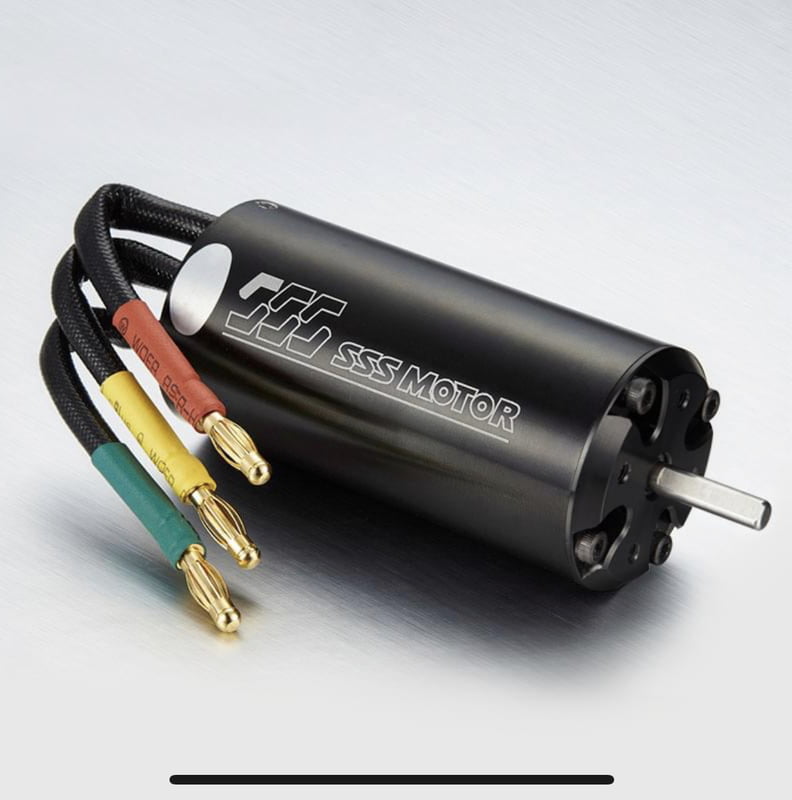

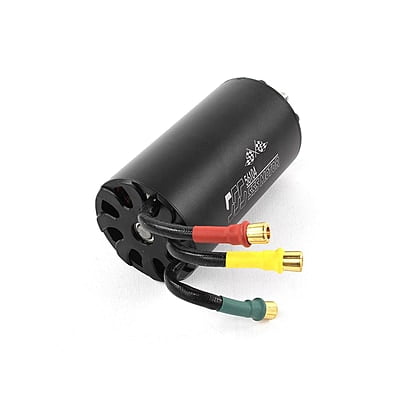

SSS 56104/500KV Brushless Motor (70mm Long Rotor)

Motor

• Type
  Brushless
• Rotor Type
  Inrunner
• Diameter (mm)
  56mm
• Length (mm)
  104mm
• KV Rating
  500KV
• Shaft Diameter (mm)
  8mm
• Length of Shaft (mm)
  25mm
• Turn
  8Y
• Poles
  6P
• Max Amps (A)
  116A
• Max Voltage (V)
  88V
• Continuos (W)
  6000W
• Max Power (W)
  11000W
• No Load Current (11.1v)
  1.4A
• Max RPM
  45K
• Resistance
  0.0167
• Weight (g)
  1020g
• Version
  V1
