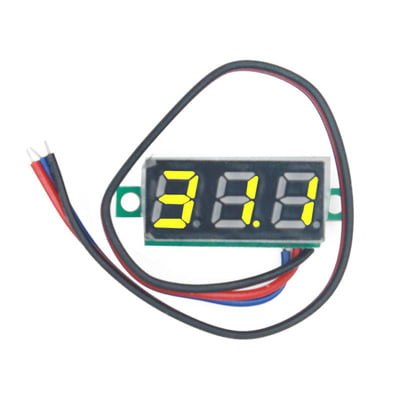

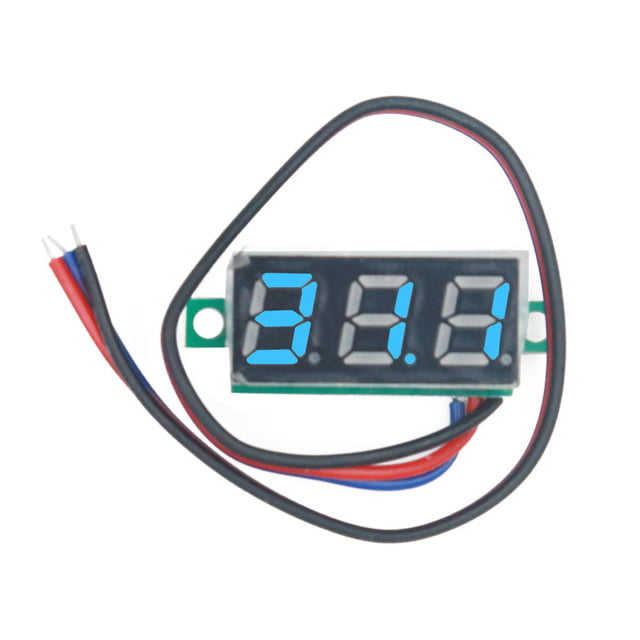

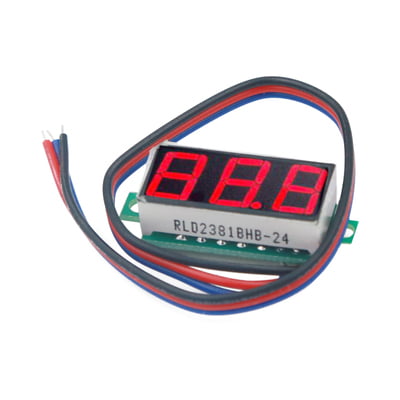

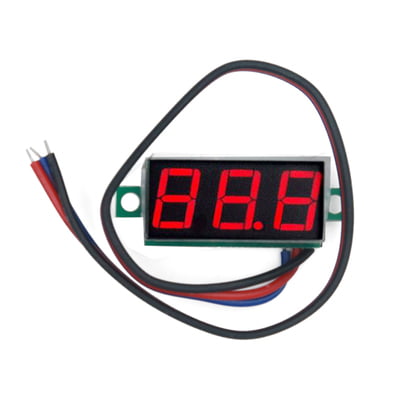

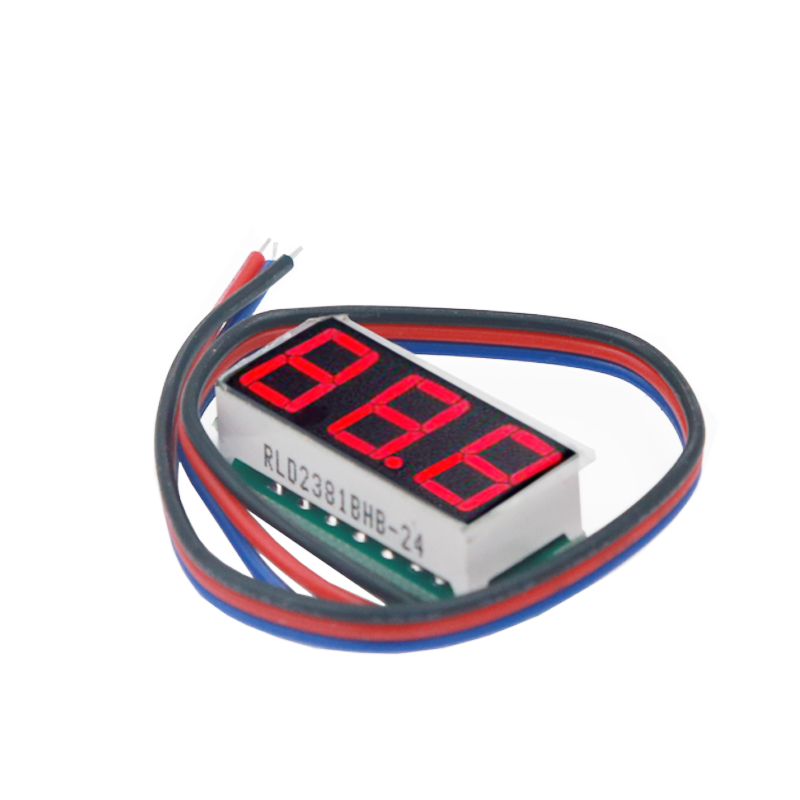

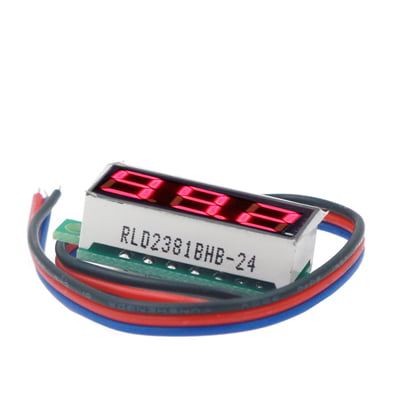

Mini LCD Volmeter 0-100V
£3.59
Range DC: DC0-100V, 2 and 3-wire products universally.
Can work directly in 5V, 9V, 12V, 24V and other circuits, without regulation.
Easily viewable. Great at a quick glance in models or general use.
Reverse polarity protection, line.
For monitoring battery voltage from 0-36V.
Note 2 line with the highest input voltage can not exceed 30V, otherwise there is the risk of damage
NOTE: Three-line voltage range 0-100V, but also can be used as second-line use in 40V within technical parameters.
2 line working voltage: 4.0~40V (with reverse protection function)
2 line detection voltage: 0.0~40V
3 line working voltage: 4.0~40V (with reverse protection function)
3 line detection voltage: 0.0~100V
Working current: less than 20mA
Display screen: 0.28 "LED
Mounting hole: 23 x 10 mm
Measurement rate: more than 200mS/ times
Measuring accuracy: 3 per thousand
Low working voltage: +4.0V
Maximum working voltage: +40V
Working temperature: -10 ~ +65
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Direct Sunlight to be avoided at all cost.
