SSS 3660/1620KV Brushless Motor

Motor

• Type
  Brushless
• Rotor Type
  Inrunner
• Diameter (mm)
  36mm
• Length (mm)
  60mm
• KV Rating
  1620KV
• Shaft Diameter (mm)
  5mm
• Length of Shaft (mm)
  16mm
• Turn
  3Y
• Poles
  4P
• Max Amps (A)
  57A
• Max Voltage (V)
  30V
• Continuos (W)
  950W
• Max Power (W)
  1800W
• No Load Current (11.1v)
  1.2A
• Max RPM
  58K
• Resistance
  0.0154
• Weight (g)
  280g
• Version
  V1
• Bullet Connector Size
  4mm

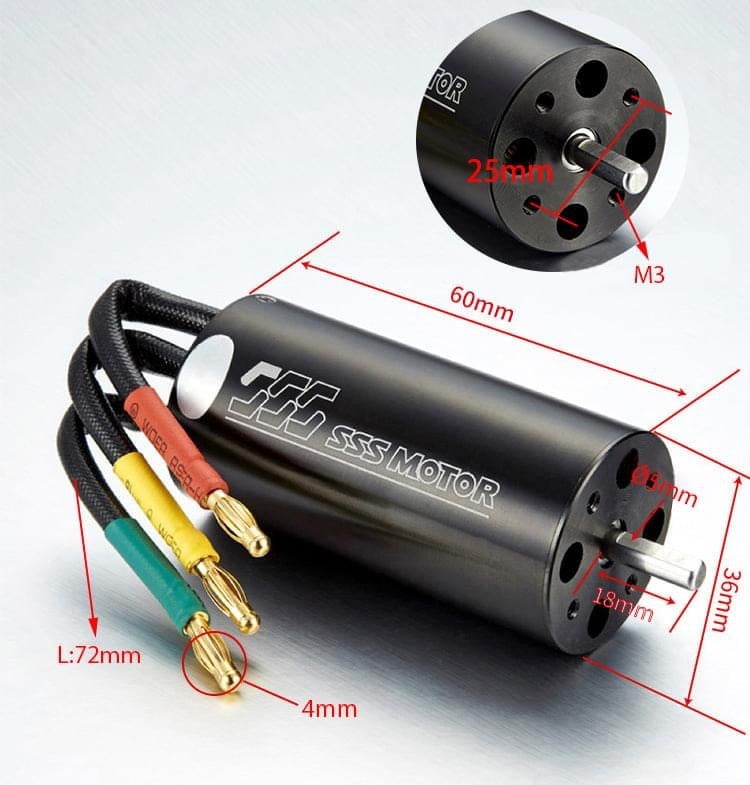

Mounting Bolt Dimenions

• Thread Size
  M3
• Bolt Quantity
  4
• PCD
  4x25mm
