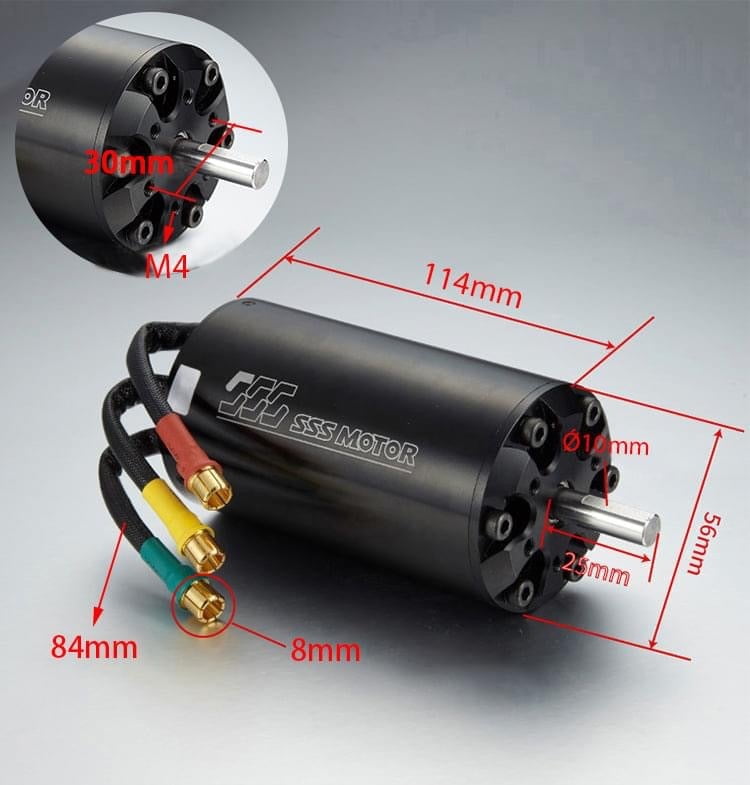

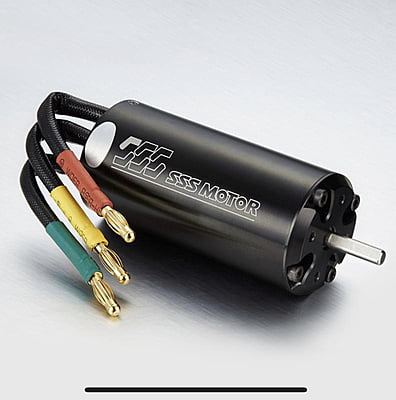

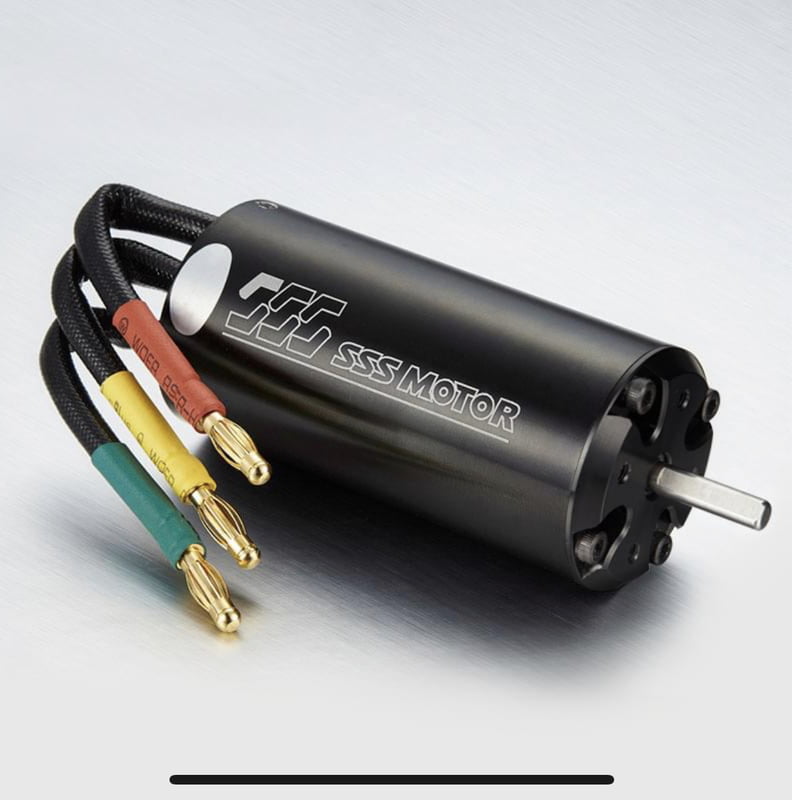

SSS 56114/500KV Brushless Motor

£108.59
Part Number
56114kv500
Weight (grams):
1175
Choose Quantity
+ Add to Cart
Specifications
Motor
  • Type
    Brushless
  • Rotor Type
    Inrunner
  • Diameter (mm)
    56mm
  • Length (mm)
    114mm
  • KV Rating
    500KV
  • Shaft Diameter (mm)
    10mm
  • Length of Shaft (mm)
    30mm
  • Turn
    7Y
  • Poles
    6P
  • Max Amps (A)
    155A
  • Max Voltage (V)
    75V
  • Continuos (W)
    7000W
  • Max Power (W)
    13000W
  • No Load Current (11.1v)
    2.3A
  • Max RPM
    45K
  • Resistance
    0.01642
  • Weight (g)
    1100g
  • Version
    V1
