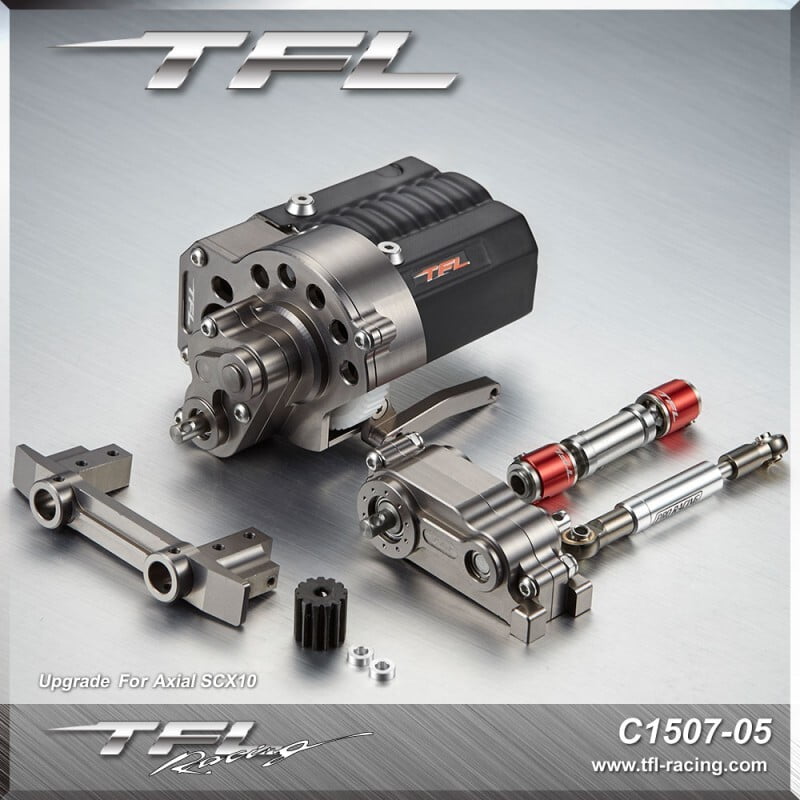

TFL SCX10 Front-Motor Mount w/gearbox & Front Bumper
Box:Aluminum Alloy,CNC Machined and Surface Anodizing
Gear:Billet Machined,45# steel and Surface finish
POM Gear:56T
Motor Gear:13T
Bearing Install
Fiber Glass Motor Cover
Output shaft Diameter:5mm
Adjustable gear protection buffer device
Motor Gear box Speed reducing ratio:0.15
Transfer Case Speed reducing ration:0.59
Front Transom W/ Servo Mounts:Install bore diameter is 40.4mm
63mm Drive Shaft adjustable length:63-74mm
Emulation steering linkage bore adjustable distance:65-80mm

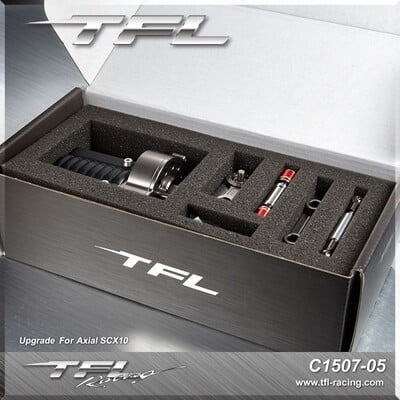

Qty: 1set ,as picture
