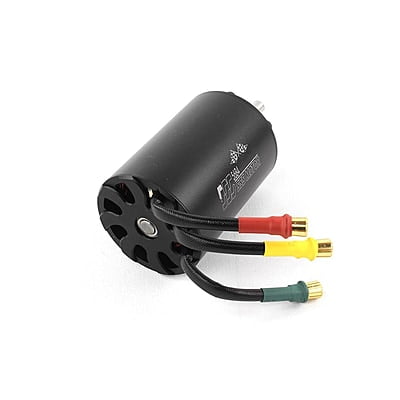

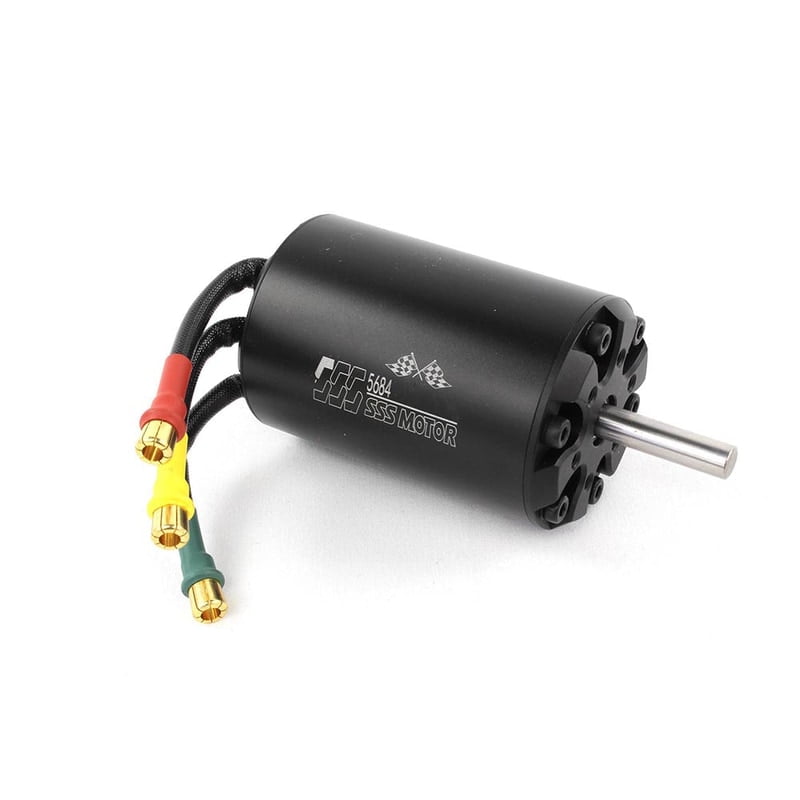

SSS 5684/800KV Brushless Motor

Motor

• Type
  Brushless
• Rotor Type
  Inrunner
• Diameter (mm)
  56mm
• Length (mm)
  84mm
• KV Rating
  800KV
• Shaft Diameter (mm)
  8mm
• Length of Shaft (mm)
  25mm
• Turn
  7Y
• Poles
  6P
• Max Amps (A)
  122A
• Max Voltage (V)
  60V
• Continuos (W)
  4000W
• Max Power (W)
  7500W
• No Load Current (11.1v)
  2.1A
• Max RPM
  50K
• Resistance
  0.01245
• Weight (g)
  730g
• Version
  V1
