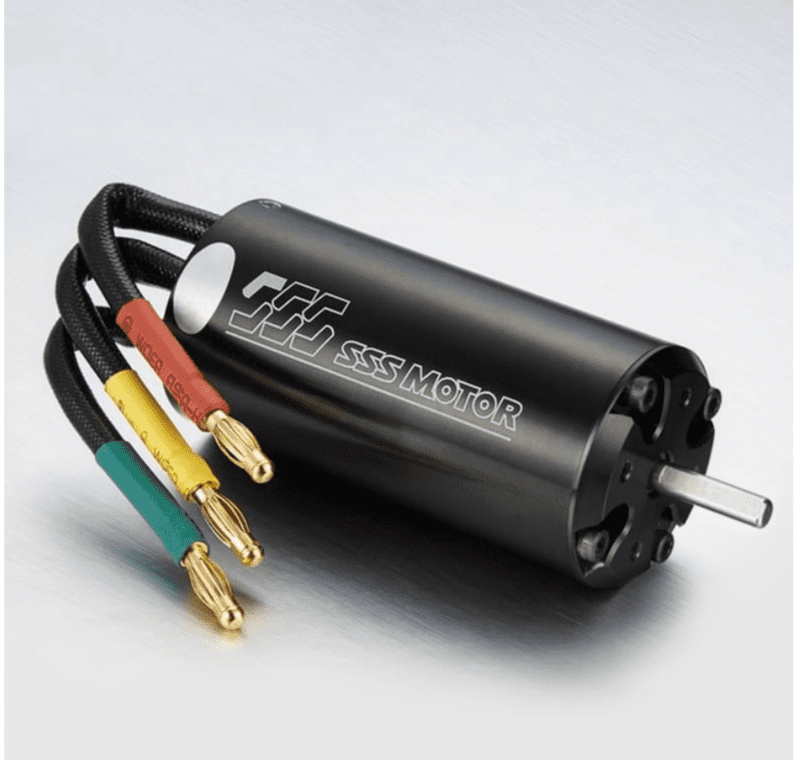

SSS 5694/1200KV Brushless Motor

£92.19
Part Number
5694kv1200
Weight (grams):
890
Choose Quantity
+ Add to Cart
Specifications
Motor
  • Type
    Brushless
  • Rotor Type
    Inrunner
  • Diameter (mm)
    56mm
  • Length (mm)
    94mm
  • KV Rating
    1200KV
  • Shaft Diameter (mm)
    8mm
  • Length of Shaft (mm)
    25mm
  • Turn
    7D
  • Poles
    6P
  • Max Amps (A)
    228A
  • Max Voltage (V)
    39V
  • Continuos (W)
    5000W
  • Max Power (W)
    9000W
  • No Load Current (11.1v)
    4A
  • Max RPM
    48K
  • Resistance
    0.00438
  • Weight (g)
    870g
  • Version
    V1
