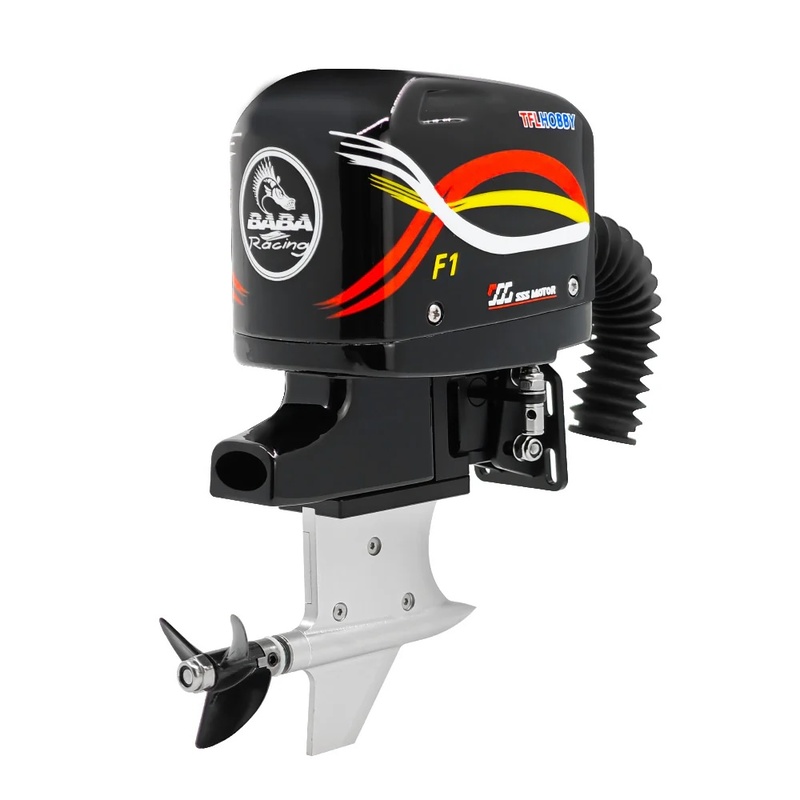

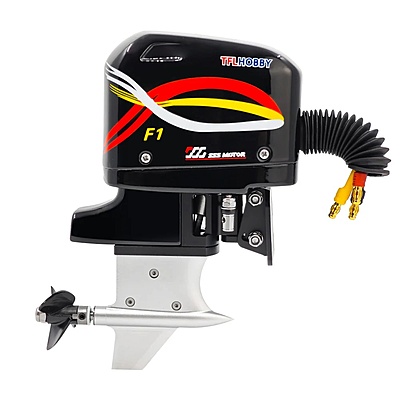

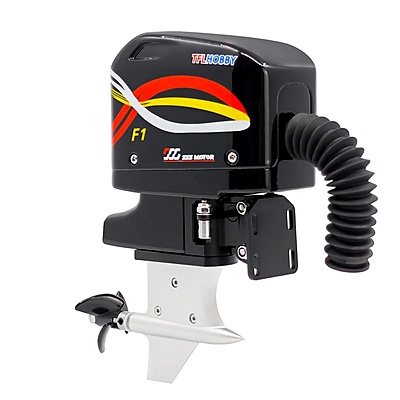

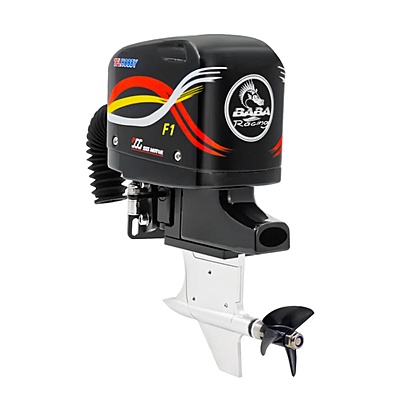

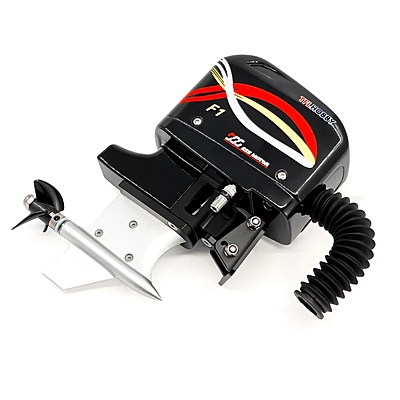

Outboard Drive System (w/Propeller, Motor, Shaft & Hatch)
Non-returnable
£97.23
SKU
TFL-B54217A Choose Quantity
Product Details
Includes:
Motor TFL SSS F450 Outrunner 3000kv
Motor Connectors: 3.5mm
Propeller: 31mm diameter (3114310 3 Blade plastic)
-Outboard Unit:
145mm from the bottom of the skeg to the top of the outboard cover.
The cover is 50mm wide
210 Grams (approx) with a brushless motor.
Drive: 4mm Propeller shaft, requiring drive dog-style propellers.
Fits up to 34mm Prop
Requires:
- Everything besides the outboard unit.
- Suggested ESC: Raider 90 esc. You will have to put the matching connector onto the esc.
- 2s maximum, 40c 2000 to 3000mah lipo pack.
- Propeller for a 4mm prop shaft, with the diameter of the prop depending on the application.
Suggested parts, links below. Check the application for a proper fit before making a purchase.
- (1) TFL-B54203 A standoff bracket may or may not be required. Depends on the application.
- (3) 3.5mm bullet connectors
- (1) linkage boots
- (1) stand-up servo mount
- (1) a linkage rods
- (1) standard servo
Notes:
-IMPORTANT
-Recommended for 18 (450mm) -22"(560mm) in the 450grams (1lb) Range.
-This is flex-driven and can only be used with left-rotation (counterclockwise) propellers.
Motor TFL SSS F450 Outrunner 3000kv
Motor Connectors: 3.5mm
Propeller: 31mm diameter (3114310 3 Blade plastic)
-Outboard Unit:
145mm from the bottom of the skeg to the top of the outboard cover.
The cover is 50mm wide
210 Grams (approx) with a brushless motor.
Drive: 4mm Propeller shaft, requiring drive dog-style propellers.
Fits up to 34mm Prop
Requires:
- Everything besides the outboard unit.
- Suggested ESC: Raider 90 esc. You will have to put the matching connector onto the esc.
- 2s maximum, 40c 2000 to 3000mah lipo pack.
- Propeller for a 4mm prop shaft, with the diameter of the prop depending on the application.
Suggested parts, links below. Check the application for a proper fit before making a purchase.
- (1) TFL-B54203 A standoff bracket may or may not be required. Depends on the application.
- (3) 3.5mm bullet connectors
- (1) linkage boots
- (1) stand-up servo mount
- (1) a linkage rods
- (1) standard servo
Notes:
-IMPORTANT
-Recommended for 18 (450mm) -22"(560mm) in the 450grams (1lb) Range.
-This is flex-driven and can only be used with left-rotation (counterclockwise) propellers.
