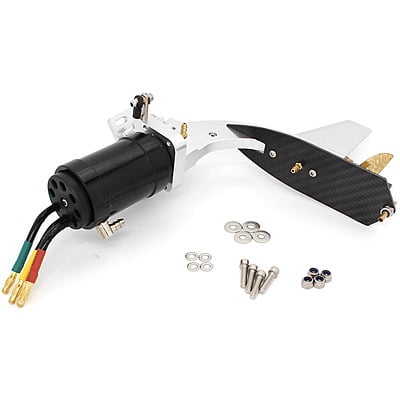

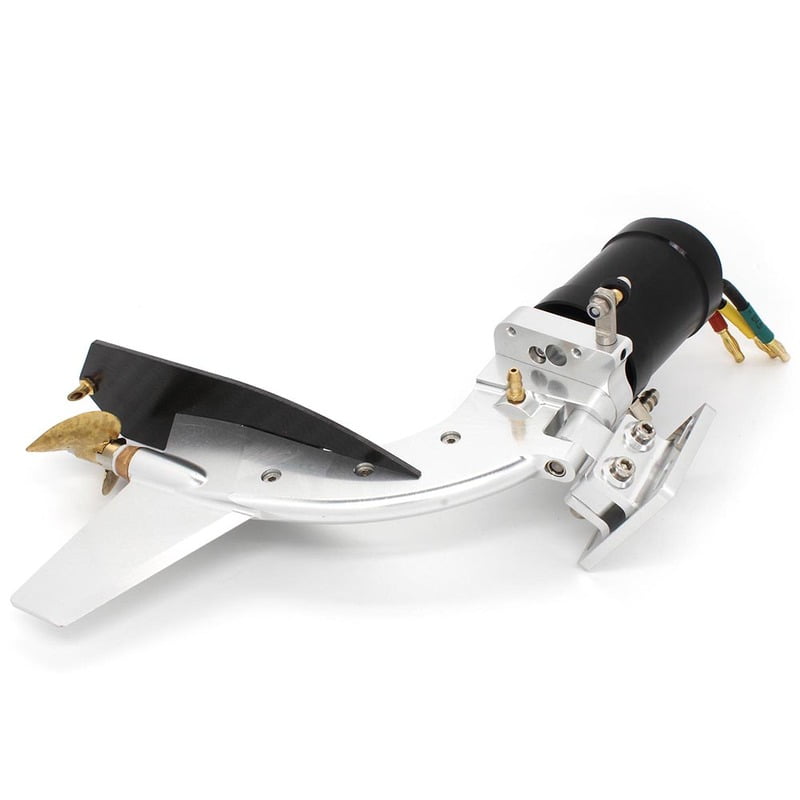

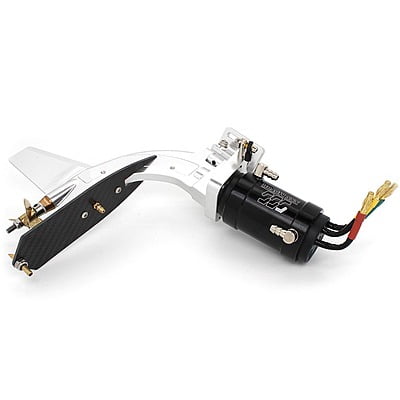

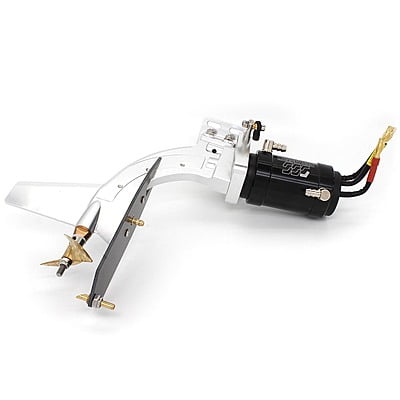

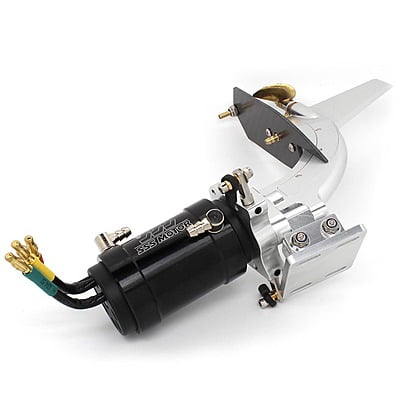

TFL Large Outboard Leg w/SSS Motor
£196.19
Suppled ready to run all you need to do is grease her up and nip the bolts up on building it onto your transom.
These Electric Race Outboard legs make a great conversion for your 3.5cc Nitro Engines such as (OS21XM, K&B 3.5cc, etc.)

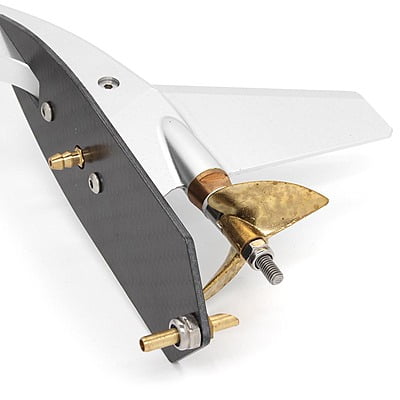

Supplied with the beautiful Carbon Fibre Cavitation Plate.
N.B. Suitable for propellers up to 42mm.
Part Number
542B40A Weight (grams):
630 Choose Quantity
Tags:
Specifications
Specifications
- Motor IncludedYes
- MotorSSS 3674 2075KV
- Drive TypeFlex Shaft
- WatercooledYes
- Tilt-ableYes
- Adjustable HeightYes
- Propeller SuppliedTFL-B11*43
- Grease/Oil NipplesYes
Dimensions (Overall)
- Overall Height152mm
- Overall Width48mm
- Overall Length (From Transom)192mm
- Width Including Arms76.6mm
- Pushrod Distance Apart70mm
- Shaft Diameter4.76mm (3/16")
- Motor Mounting HolesM4/30mm & M3/25mm

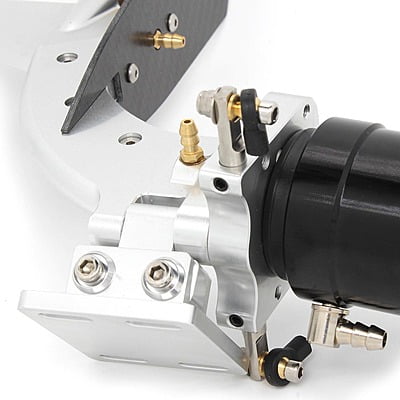

Mounting Plate
- Width48mm
- Height40mm
- Mounting Bolt Holes4
- Bolt Diameter4mm (M4)
