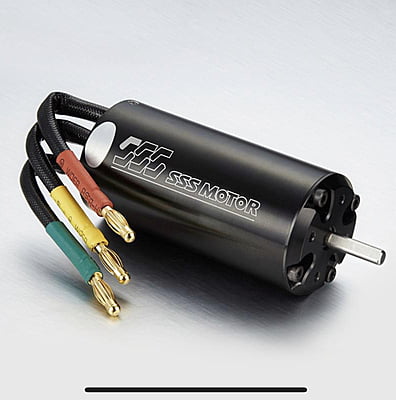

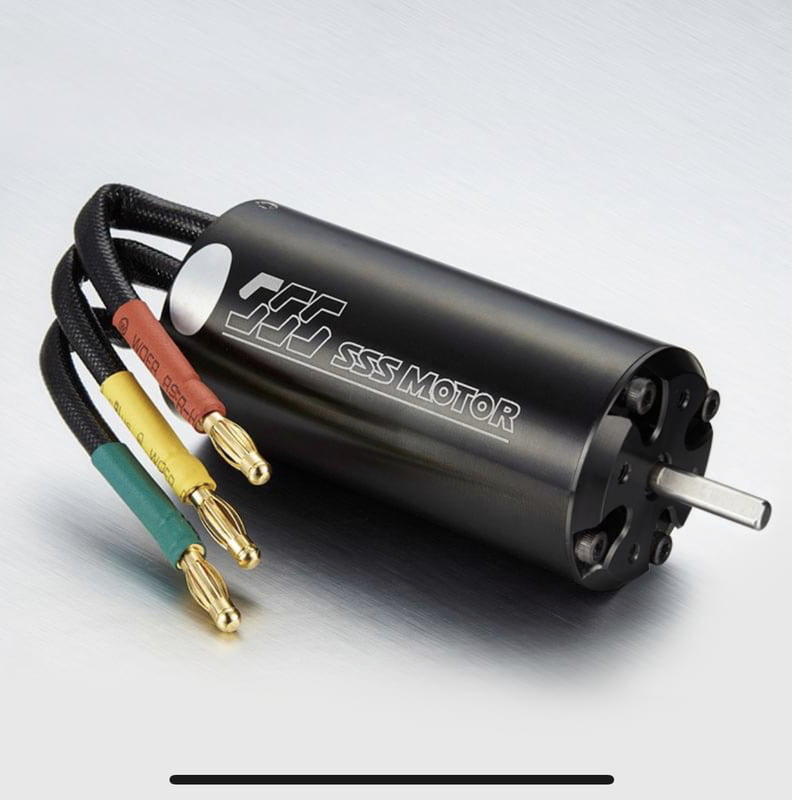

SSS 3674/2075KV Brushless Motor

Motor

• Type
  Brushless
• Rotor Type
  Inrunner
• Diameter (mm)
  36mm
• Length (mm)
  74mm
• KV Rating
  2075KV
• Shaft Diameter (mm)
  5mm
• Length of Shaft (mm)
  18mm
• Turn
  4D
• Poles
  4P
• Max Amps (A)
  73A
• Max Voltage (V)
  30V
• Max Power (W)
  2200W
• No Load Current (11.1v)
  1.9A
• Max RPM
  60K
• Weight (g)
  320g
• Version
  V1
• Bullet Connector Size
  4mm

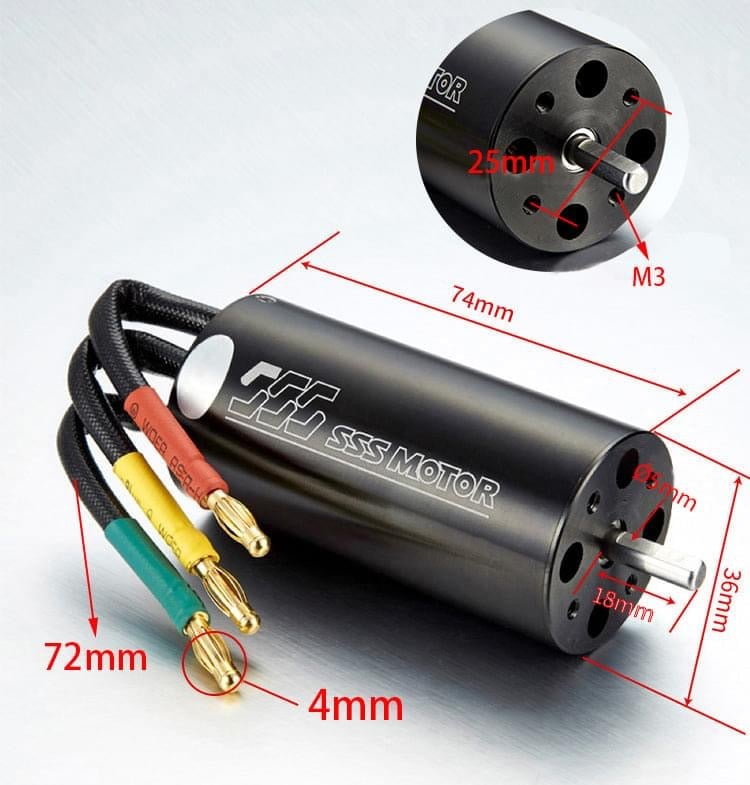

Mounting Bolt Dimenions

• Thread Size
  M3
• Maximum Insertion
  5mm
• Bolt Quantity
  4
• PCD
  4x25mm
