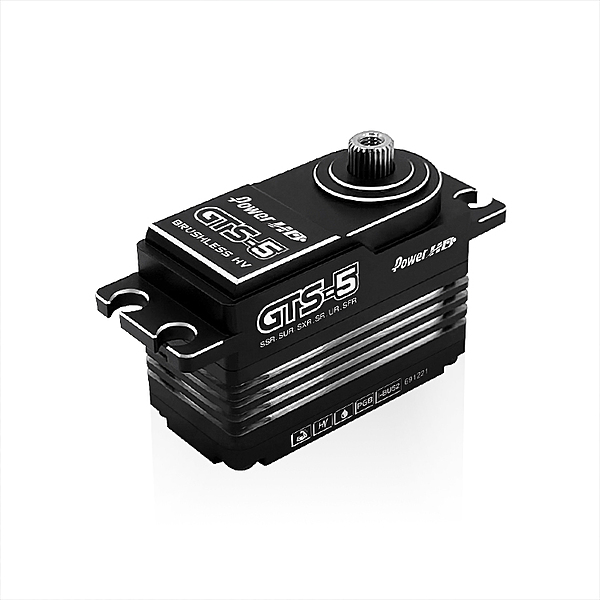

POWER HD HD-GTS-5 Low Profile HV 7075+Steel MG Brushless Servo Alu Case (50kg-cm/0.08s @ 8.4V)

The Power HD GTS-5 HV CNC Brushless Digital Servo (HD-GTS-5) delivers outstanding torque and speed in a low profile form factor. Offering up to 50.0 kg-cm torque with a 0.08 s transit time at 8.4 V, it is built around a four-pole brushless motor, dual ball bearings and 7075+steel gears for fast response and long service life. The GTS-5 supports FLYSKY i-BUS2 for servo parameter setup, data logging and warnings, and works with the high-speed modes of leading radios.

Key Features

• HV CNC brushless digital servo with four-pole brushless motor
• Low profile size: 41.0 × 20.0 × 29.0 mm
• Supports FLYSKY radio i-BUS2 protocol for setup, data logging and warnings
• Supports high-speed radio modes:
  • Noble NB4 Pro: NOR / SR / SFR
  • Futaba: NOR / SR / UR
  • SANWA: NOR / SHR / SSR / SUR / SXR
• Dual ball bearings

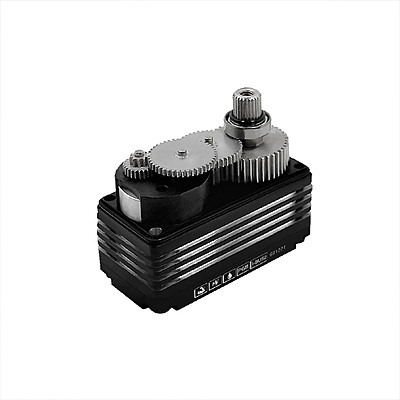

• 7075+steel gear train
• Compatible with Power HD program box PG-CB63

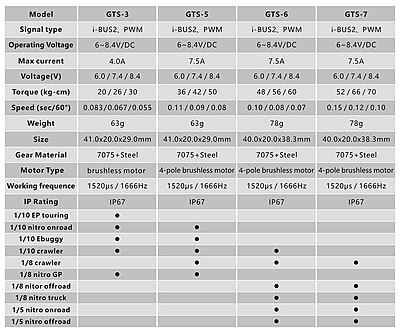

Performance Specifications

• Torque: 36.0 kg-cm (6.0 V) / 42.0 kg-cm (7.4 V) / 50.0 kg-cm (8.4 V)
• Speed: 0.11 s (6.0 V) / 0.09 s (7.4 V) / 0.08 s (8.4 V)
• Operating voltage: 6.0–8.4 V DC
• Max current: 7.5 A
• Working frequency: 1520 / 1666 Hz
• Operating temperature: −20 to 60 °C
• Size: 41.0 × 20.0 × 29.0 mm
• Weight: 63 g
• Bearing type: Ball bearing ×2
• Motor type: Brushless
• Gear type: 7075+Steel

With high-voltage capability, rapid response and extensive radio mode support, the Power HD GTS-5 provides a robust, low profile solution for demanding RC applications where compact size, strength and precision are essential.
