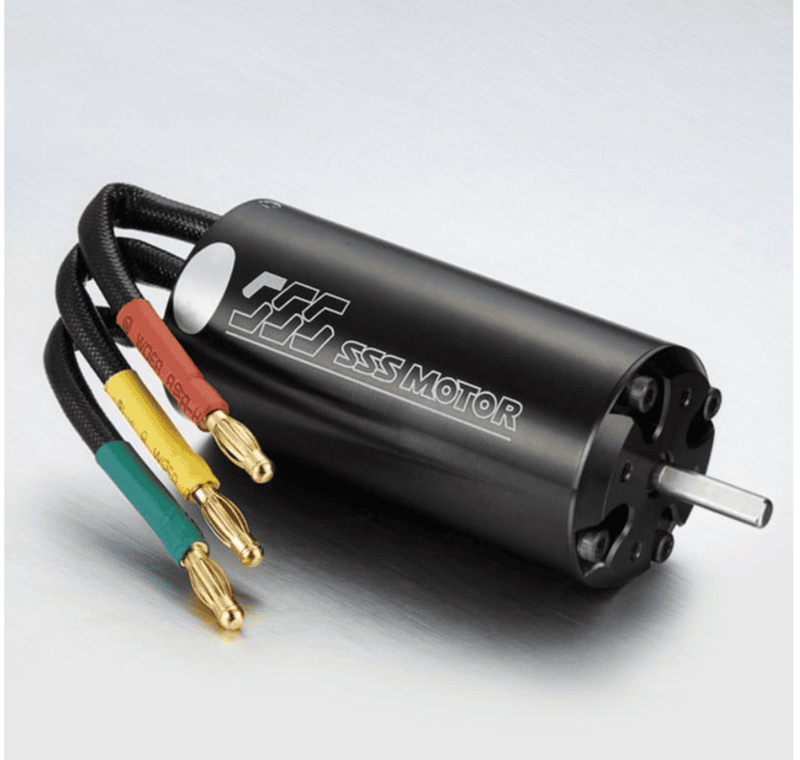

SSS 5694/500KV V2 Brushless Motor

£91.80 £105.00
Part Number
5694-V2 KV500
Choose Quantity
+ Add to Cart
Specifications
Motor
  • Type
    Brushless
  • Rotor Type
    Inrunner
  • Diameter (mm)
    56mm
  • Length (mm)
    94mm
  • KV Rating
    500KV
  • Shaft Diameter (mm)
    8mm
  • Length of Shaft (mm)
    28mm
  • Turn
    9Y
  • Poles
    6P
  • Max Amps (A)
    102A
  • Max Voltage (V)
    95V
  • Continuos (W)
    6000W
  • Max Power (W)
    10000W
  • No Load Current (11.1v)
    1.7A
  • Max RPM
    50K
  • Resistance
    0.0173
  • Weight (g)
    880g
  • Version
    V2
