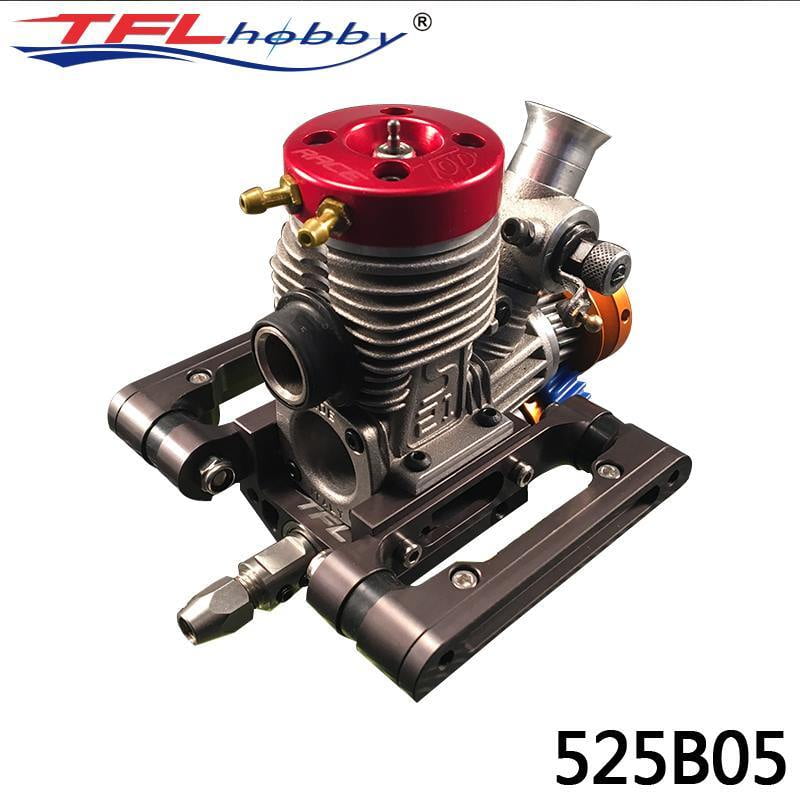

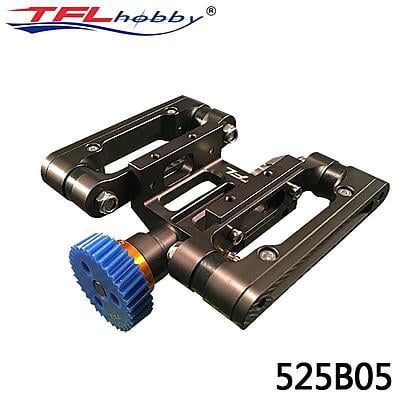

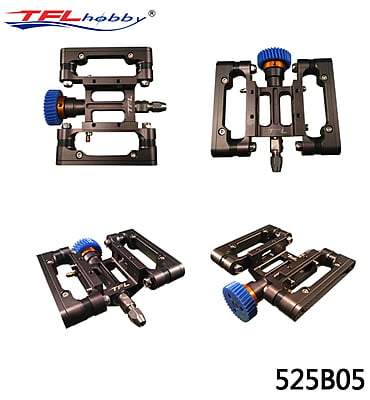

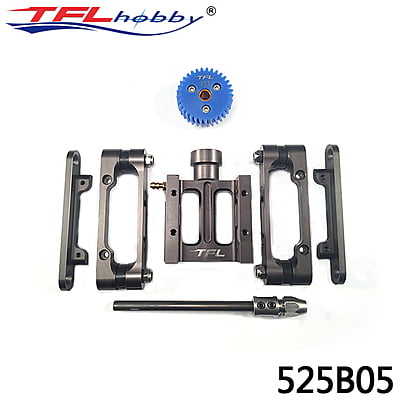

TFL FSR-O, V 3.5cc Reduction Engine Mount (Full Assembly)
£71.39
Tags:
TFL's Nitro FSR-O/V 3.5cc Reduction Engine Mount is built with reliability in mind.
Dual Bearings built into the aluminium mount can be oiled using the nipple built into the frame underneath.
Helical Gears for a smoother transfer of power.
Four bolt quick release function allows you to easily pull the gearbox, mount & engine out in one.

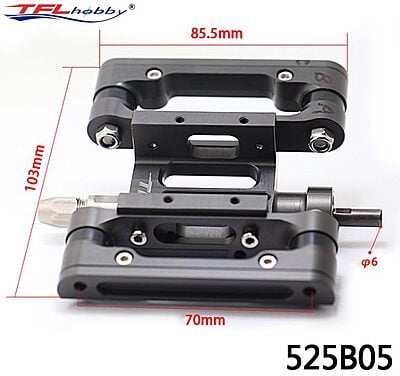

Overall Width (not inc Mounting Bolts): 102mm
Overall Length (Inc coupling & gears): 113mm
As standard the assembly is supplied with 18T/32T gears, however these are also available in different ratios. Available by clicking the tag above or here --> "TFL FSR 3.5 Reduction Mount"
Part Number
525B05 Weight (grams):
300 Choose Quantity
Specifications
Specifications

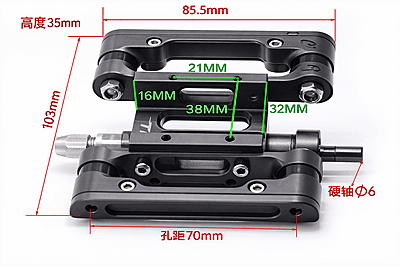

- Engine Rail Width102mm (4")
- Quick ReleaseYes (4 Bolts)
- MaterialAluminium
- Damper Count4
- Oil PointYes
- Shaft Aperture4.76mm (3/16")
- Engine Bolt Spacing21mm x 38mm
- Gears Included18T/32T
