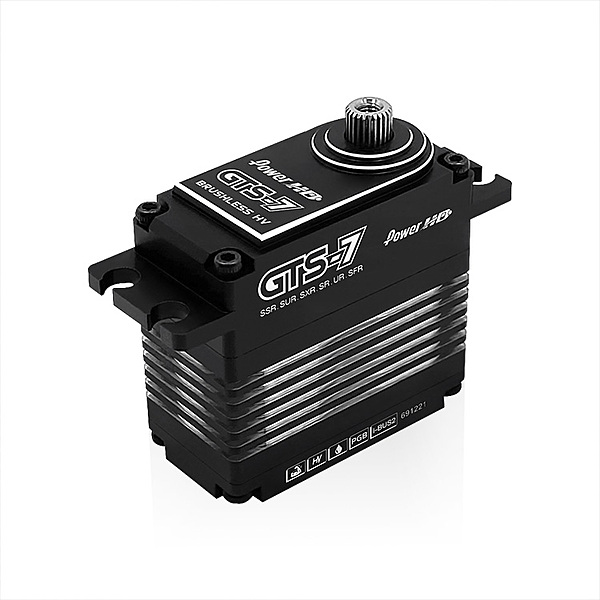

POWER HD HD-GTS-7 HV MG Brushless Servo Alu Case (70kg-cm/0.10s @ 8.4V) for 1:8

The Power HD GTS-7 HV CNC Brushless Digital Servo (HD-GTS-7) delivers a formidable 70kg-cm of torque at 8.4V with a rapid 0.10s transit speed. Built around a four‑pole brushless motor, it is designed for high performance, fast response, heat resistance and long service life. Precision 7075+steel gearing and dual ball bearings provide smooth, durable output under heavy loads.

Radio and Protocol Support

• Supports FlySky i-BUS2 for servo parameter setup, data logging, warning and related functions
• High-speed mode support: Noble NB4 Pro (NOR / SR / SFR), Futaba (NOR / SR / UR), SANWA (NOR / SHR / SSR / SUR / SXR)
• Compatible with the Power HD program box PG-CB63

Key Features

• Four-pole brushless motor for high performance and fast response
• HV operation: 6.0–8.4V DC, max current 7.5A

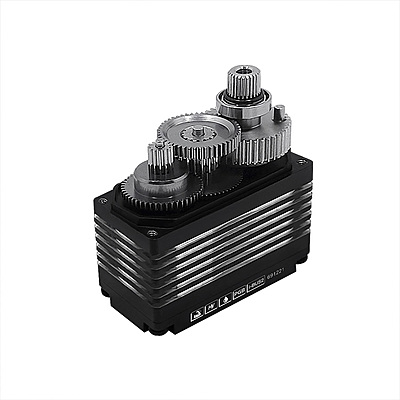

• Dual ball bearings and 7075+steel gear train
• Working frequency: 1520 / 1666 Hz
• Operating temperature: -20 to 60°C

Performance

• Torque: 52.0 kg-cm (6.0V) / 66.0 kg-cm (7.4V) / 70.0 kg-cm (8.4V)
• Speed: 0.15s (6.0V) / 0.12s (7.4V) / 0.10s (8.4V)

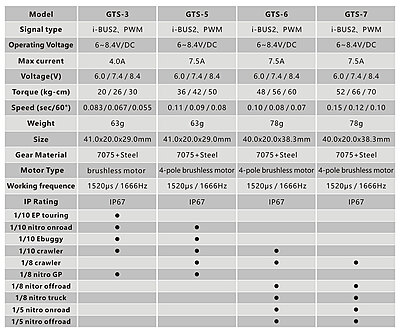

Specifications

• Operating voltage: 6.0–8.4V DC
• Size: 40.0 x 20.0 x 38.3 mm (1.57 x 0.79 x 1.51 in)
• Weight: 78 g (2.75 oz)
• Bearing type: Ball bearing x2
• Motor type: Brushless
• Gear type: 7075+Steel
