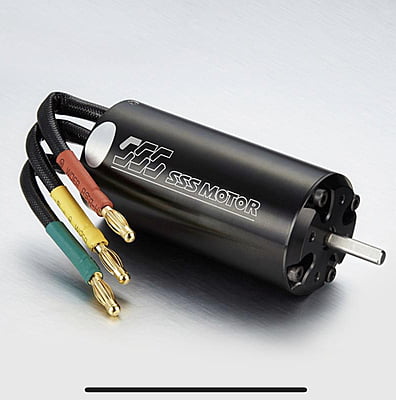

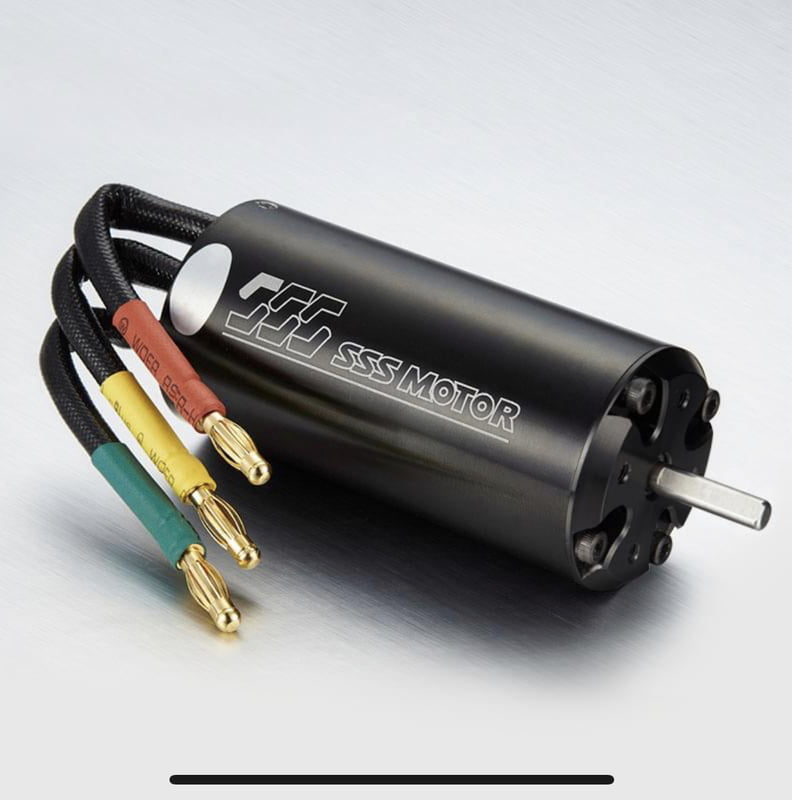

SSS 4082/2200KV Brushless Motor

Motor

• Type
  Brushless
• Rotor Type
  Inrunner
• Diameter (mm)
  40mm
• Length (mm)
  82mm
• KV Rating
  2200KV
• Shaft Diameter (mm)
  5mm
• Length of Shaft (mm)
  20mm
• Turn
  3D
• Poles
  4P
• Max Amps (A)
  192A
• Max Voltage (V)
  25V
• Continuos (W)
  2500W
• Max Power (W)
  5000W
• No Load Current (11.1v)
  3.2A
• Max RPM
  55K
• Resistance
  0.0047
• Weight (g)
  490g
• Version
  V2
• Bullet Connector Size
  6mm

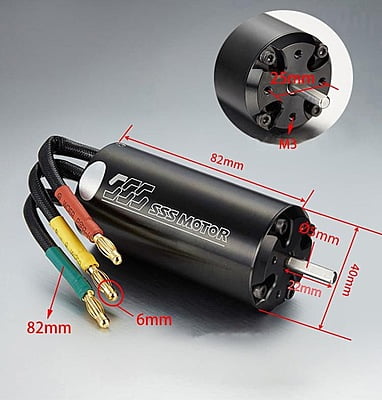

Mounting Bolt Dimenions

• Thread Size
  M3
• Bolt Quantity
  4
• PCD
  4x24.74mm
