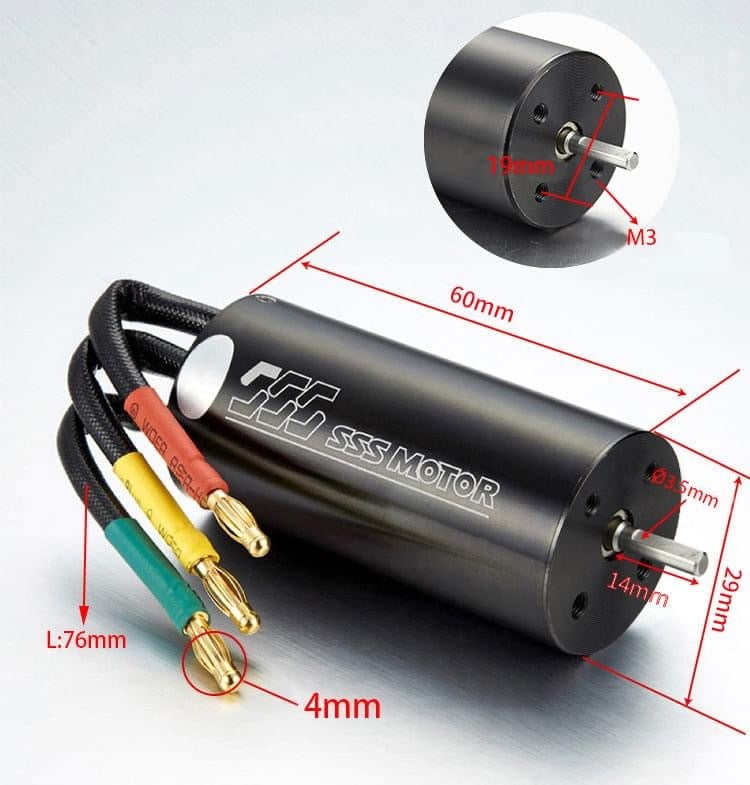

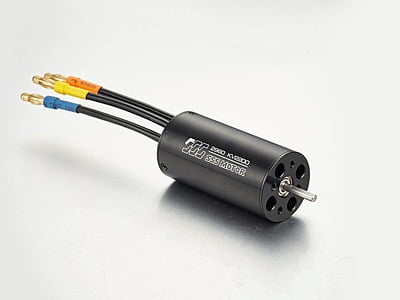

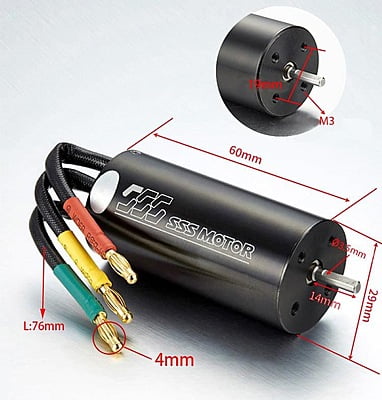

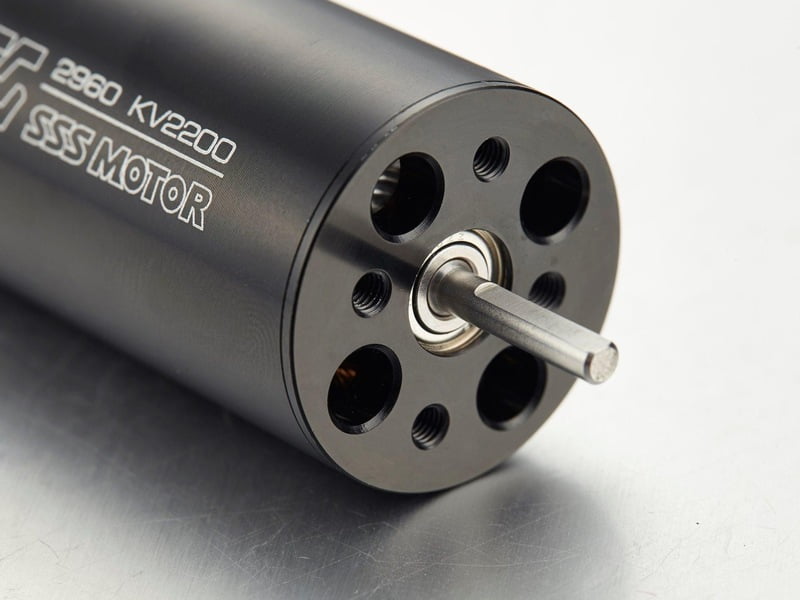

SSS 2960/4122KV Brushless Motor

Motor

• Type
  Brushless
• Rotor Type
  Inrunner
• Diameter (mm)
  29mm
• Length (mm)
  60mm
• KV Rating
  4122KV
• Shaft Diameter (mm)
  4mm
• Length of Shaft (mm)
  13mm
• Turn
  3D
• Poles
  4P
• Max Amps (A)
  93A
• Max Voltage (V)
  14V
• Continuos (W)
  750W
• Max Power (W)
  1300W
• No Load Current (11.1v)
  2.2A
• Max RPM
  60K
• Resistance
  0.0062
• Version
  V1
• Bullet Connector Size
  4mm

Mounting Bolt Dimenions

• Thread Size
  M3
• Bolt Quantity
  4
• PCD
  4x19mm
