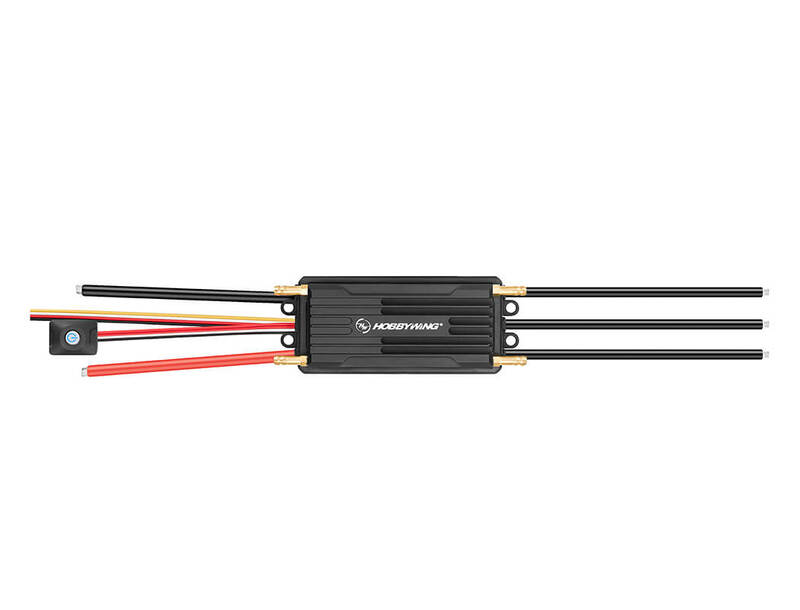

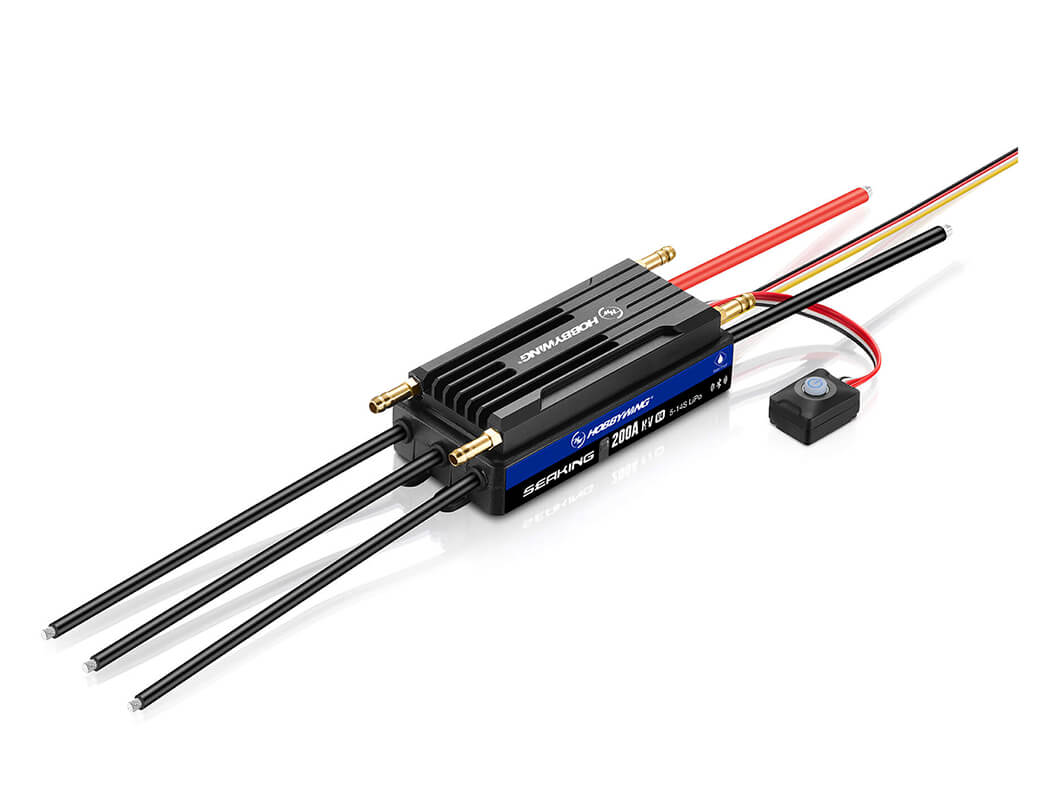

HobbyWing SeaKing ESC 200A V4
HOBBYWING SEAKING 200A HV V4 BRUSHLESS SPEED CONTROL
SPECIFICATIONS
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Cont./Peak Current: 200A/1000A
Input Voltage: 5-14S Lipo
BEC Output: Switch Mode 6V/7.4V/8.4V @8A
Input Wires: Black-8AWG-200mm*1 Red-8AWG-200mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: 6.5mm Female
ESC Programing via LED Program Box: Not Supported
ESC Programing via LCD G2 Program Box: Not Supported
ESC Programing via LCD PRO: Not Supported
ESC Programing via OTA Programmer: Not Supported
ESC Programing via HW LINK APP: Supported (Built-in Bluetooth)
Data Recording Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 106*51*31mm
Weight: 386g (w / wires & output connectors)
Boat Applicable: ≤140CM
