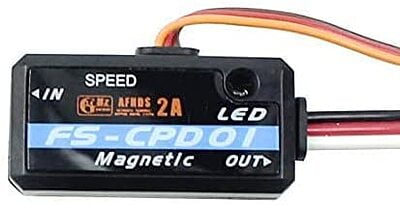

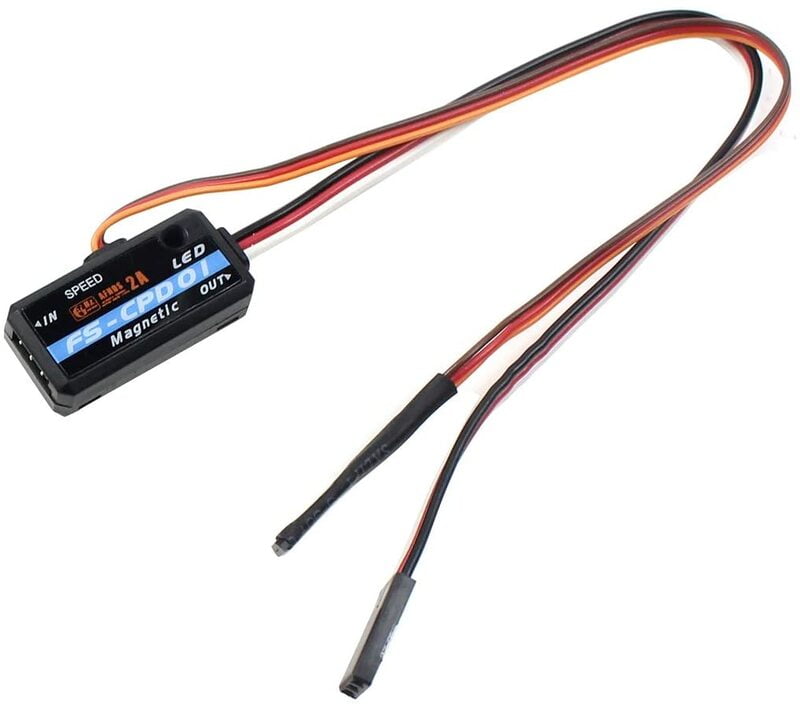

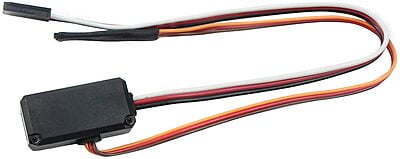

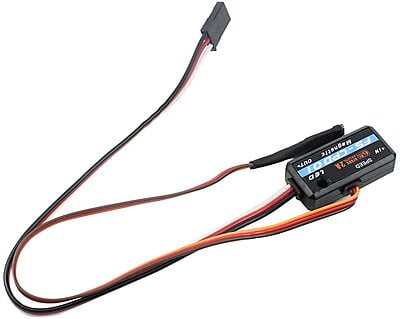

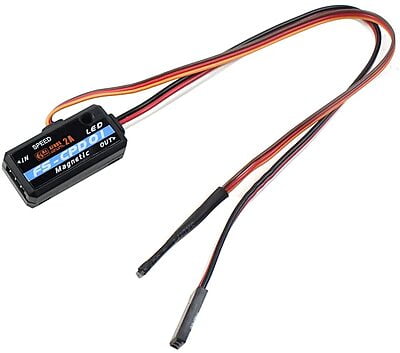

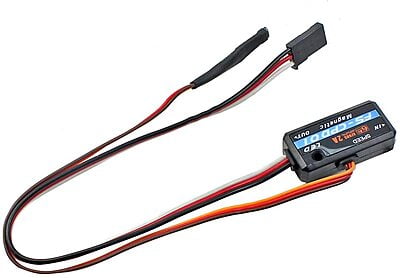

Flysky FS-CPD01 Magnetic RPM Telemetry

Flysky Magnetic Speed Collection Telemetry Sensor FS-CPD01

The speed sensor outputs the motor speed in real-time.

• Motor speed: Speed of motor.
• Measurement value: rpm (rotations per minute)

Magnetic induction speed sensor (FS-CPD01)
1. Connect the FS-CPD01 sensor to either the SENS port on the receiver or the in the port of another sensor.
2. Secure the magnet in the desired position (for example the inside of a wheel) and secure the sensor next to the magnet.
3. The distance between the sensor and the magnet should be 2mm, with the north or south pole of the magnet facing the sensor.

• Product Model: FS-CPD01
• Product name: Speed sensor (magnetic induction)
• Speed range: 0 to 60000RPM
• Power: 4.0 ～ 8.4V
• Data port: i.bus / (sens)
• Temperature range: 0 ℃ — + 60 ℃
• Humidity range: 20% -95%
• Dimensions: 31 * 15 * 8.5mm
• Weight: 6.6g
