TFL Scale Outboard (Geared)
£138.26
Tags:
TFL Large Scale Geared Outboard Motor – B54210
The TFL B54210 Large Scale Geared Outboard is a powerful, scale-ready drive system fitted with a SSS 3674 2075KV brushless inrunner motor.
Designed for the TFL Caudwell 1238 and TFL Warrior P1 1148, this water-cooled outboard delivers strong performance on up to 4S LiPo while maintaining a highly realistic scale appearance.
Ideal for custom builds and quick boat setups.
Supplier Delivery (Working Days):
10-20 Days Weight (grams):
278g SKU

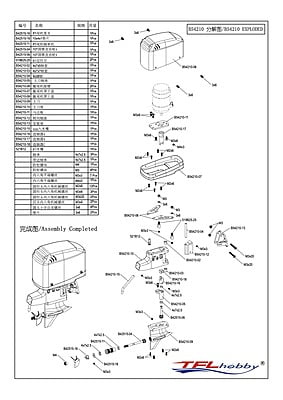

TFL-B54210 Exploded Diagram
Exploded Diagram Maintenance Manual (en)
Maintenance Manual (en) Choose Quantity
Product Details
Specifications
TFL Large Scale Geared Outboard Motor (B54210) With SSS 3674 2075KV Brushless Inrunner – Water Cooled
The TFL B54210 Large Scale Geared Outboard Motor is a high-performance, scale-detailed drive system designed for serious RC boat enthusiasts.
Supplied with a powerful SSS 3674 2075KV brushless inrunner motor, this geared outboard delivers strong torque, smooth power delivery, and reliable performance for large-scale mono and F1 Tunnel hulls. Originally designed for the TFL Caudwell 1238 and TFL Warrior P1 1148, this outboard is also widely used in custom builds where achieving a true-to-life scale appearance is just as important as performance. Its realistic design makes it perfect for builders wanting that authentic offshore race boat look.
Performance & Cooling; The integrated water-cooling system ensures consistent running temperatures, even under demanding conditions. The outboard unit cleverly picks up its own cooling water, providing efficient circulation directly to the motor for dependable high-speed operation. Designed to run on up to 3-4S LiPo batteries, this setup offers an excellent balance of speed, torque, and reliability — ideal for a quick, responsive boat setup without pushing components beyond safe limits.
Key Features
TFL Part Number: B54210
Pre-installed SSS 3674 2075KV brushless inrunner motor
Geared outboard drive system
Water-cooled motor with self water pick-up
Suitable for up to 4S LiPo
Designed for TFL Caudwell 1238 & TFL Warrior P1 1148
Perfect for large-scale and custom builds
Realistic scale appearance Whether you're upgrading your Caudwell or Warrior, or building a custom large-scale project from scratch, the TFL Large Scale Geared Outboard offers the perfect combination of power, reliability, and true scale styling.
Overview
- Motor IncludedYes
- MotorSSS 3674 2075KV
- Drive TypeGeared (Mitre)
- WatercooledYes
- Tilt-ableYes
- Adjustable HeightYes
- Grease/Oil NipplesNo
Dimensions
- Overall Height173mm
- Overall Width68mm
- Overall Length (From Transom)105mm
- Width Including Arms68mm
- Pushrod Distance Apart62mm
- Shaft Diameter4mm
- Motor Mounting HolesN/A
Mounting Plate
- Width30mm
- Height38mm
- Mounting Bolt Holes4
- Bolt Diameter4mm (M4)
