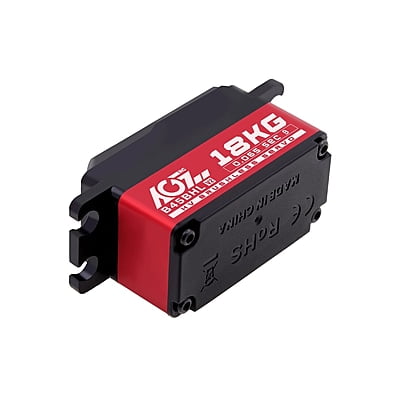

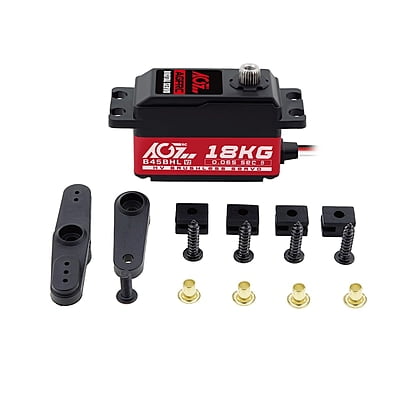

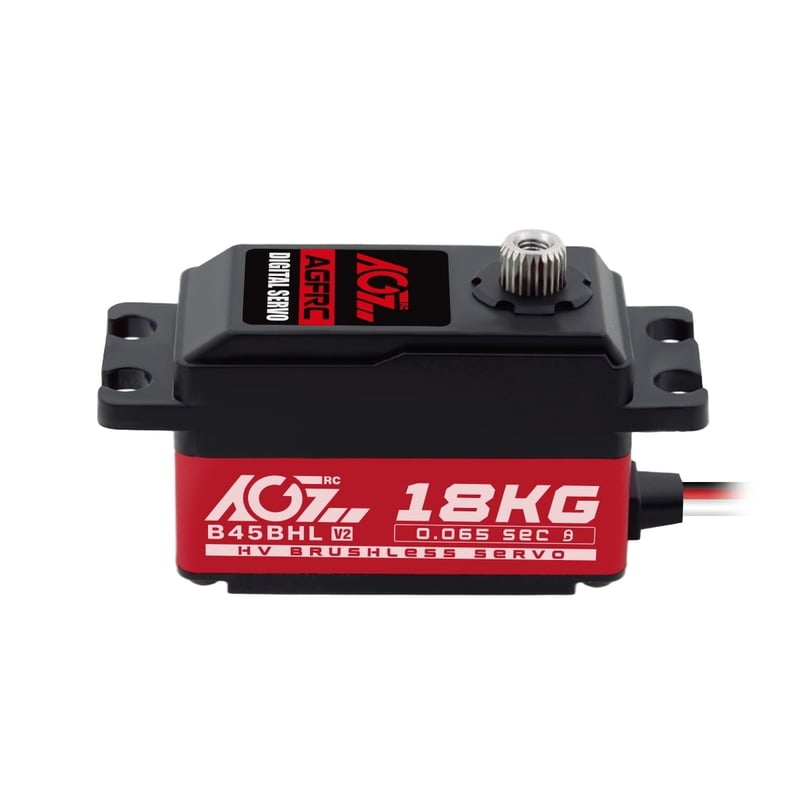

AGFRC Low Profile Digital Servo 0.065/18kg

AGFRC 18KG 0.065Sec High Speed Low Profile Programmable High Performance Brushless Digital Steering RC Servo for 1/10 RC Racing Drift Car (B45BHL V2)

AGFrc B45BHL V2 programmable digital low profile Servo, with the plastic case of top and bottom, CNC aluminium middle case, and 4.8-8.4V nominal operating voltage. The brushless motor design to provide the 18kg-cm high torque and 0.065sec extremely fast response at 8.4V. High-precision combination of steel gear and titanium gears to make sure the servo high durability and smooth running. Like most regular servos, there are operating travel angle is 180 degree, that means that it can move anywhere between 0-180 degree and the mechanical angle can even reach 220 degree. If your installation position is compact and has high requirements for speed and torque, then you should have a try of this one.

Feature

Metal Double Ball Bearings

Splash-proof And Dust-proof

Plastic And CNC Aluminium Shell

Programmable Digital Low Profile Servo

More Durable Steel Gear And Titanium Gears

Long-life Span And Reliable Brushless Motor

Ideal for 1/10 1/12 On-Road, Off-Road and Truck cars, Helicopter, Plane, Robot Arm and Engine etc.

Stall Torque:

12.0 kg-cm (166 oz-in) @ 4.8V

14.5 kg-cm (201 oz-in) @ 6.0V

16.0 kg-cm (222 oz-in) @ 7.4V

18.0 kg-cm (250 oz-in) @ 8.4V

Operating Speed:

0.105sec/60° @ 4.8V

0.090sec/60° @ 6.0V

0.075sec/60° @ 7.4V

0.065sec/60° @ 8.4V
