King Max Servo Mini

£34.19
Tags:

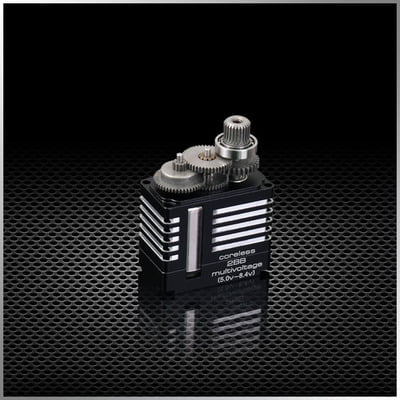

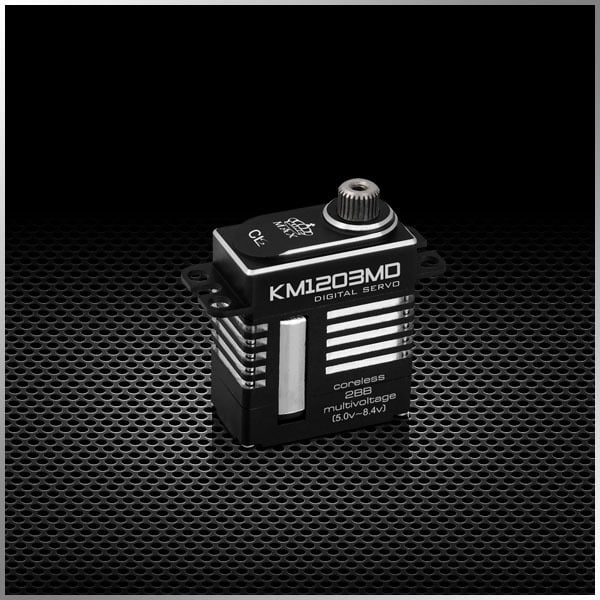

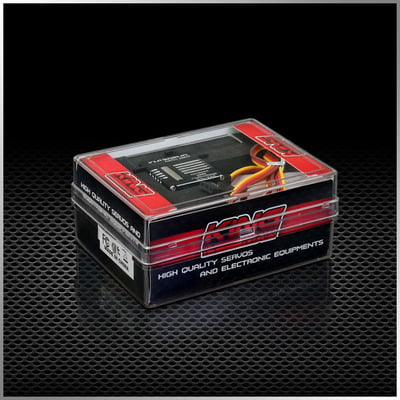

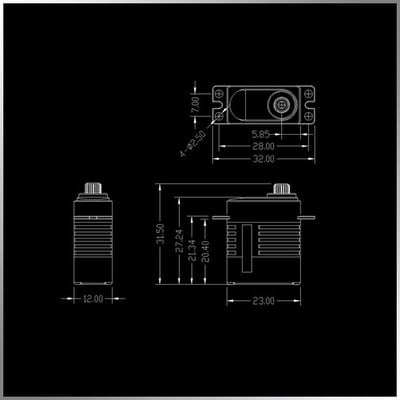

KM1203MD--20g 9kg.cm,digital,metal gears mini servo Item:KM1203MD Gear:Full metal Spline:Exclusive Motor:Coreless motor Bearing:2BB Dead band:2μs default Waterproof:No Operating Voltage:DC5.0~8.4V Working frequence:1520μs/330hz FEATURE: -- Programmable high performance matal gears(copper+titanium) mini digital servo -- High quality coreless motor -- Full CNC aluminium hulls and structure -- Dual ball bearings -- Ideal for 450 class helicopter swashplate SPECIFICATIONS: Operating Speed (5.0V): 0.14sec/60 degrees at no load Operating Speed (6.0V): 0.11sec/60 degrees at no load Operating Speed (7.4V): 0.08sec/60 degrees at no load Operating Speed (8.4V): 0.07sec/60 degrees at no load Stall Torque (5.0V): 6.0 kg.cm (102.78 oz/in) Stall Torque (6.0V): 7.4 kg.cm (102.78 oz/in) Stall Torque (7.4V): 9.5 kg.cm (131.95 oz/in) Stall Torque (8.4V): 10.5 kg.cm (131.95 oz/in) Potentiometer Drive: Direct Drive Dimensions: 23X12X27.5 mm /0.91 X0.47X1.07 in Weight: 20.3 g (0.72oz) Connector Wire Length: JR320 mm (12.48in) Packing Detail: Transparency plastic box size: 83.5mmx63.5mmx37.5mm weight: 80g Carton box size: 43x26.5x20.5cm 100sets/1CTN Cross weight:8.45kg Optional Accessories: KM1203MD-001:Offered accessaries KM1203MD-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
Part Number
KM1203MD
Weight (grams):
65
