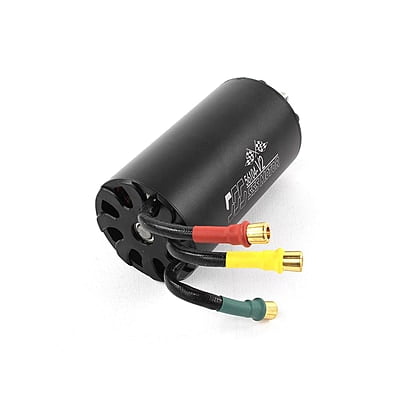

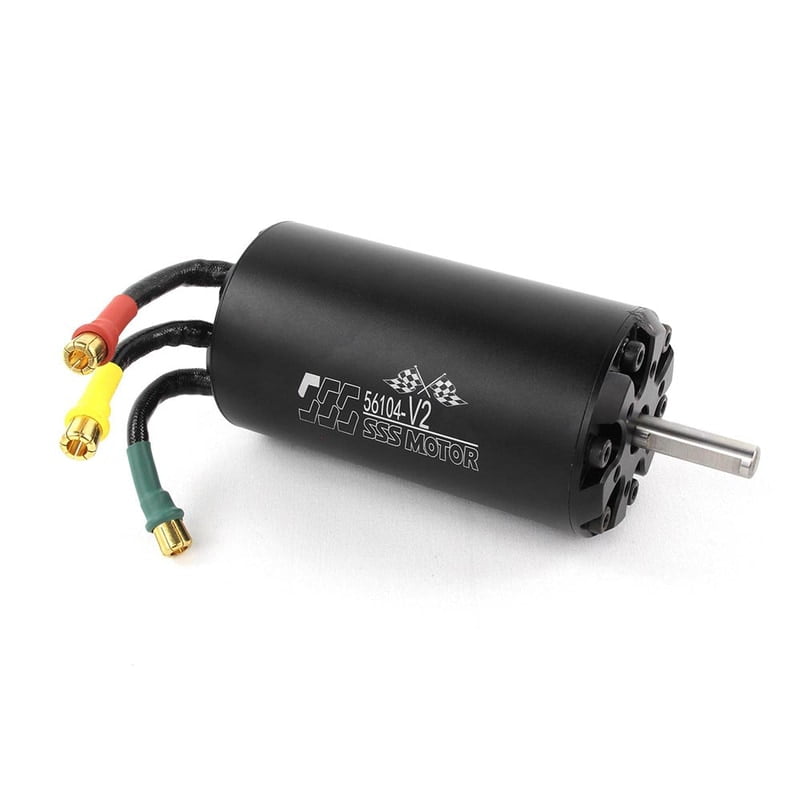

SSS 56104/500KV V2 Brushless Motor

£142.77
Part Number
56104-V2 KV500
Choose Quantity
+ Add to Cart
Specifications
Motor
  • Type
    Brushless
  • Rotor Type
    Inrunner
  • Diameter (mm)
    56mm
  • Length (mm)
    104mm
  • KV Rating
    500KV
  • Shaft Diameter (mm)
    8mm
  • Length of Shaft (mm)
    28mm
  • Turn
    7Y
  • Poles
    6P
  • Max Amps (A)
    145A
  • Max Voltage (V)
    80V
  • Continuos (W)
    6800W
  • Max Power (W)
    12000W
  • No Load Current (11.1v)
    1.7A
  • Max RPM
    45K
  • Resistance
    0.0152
  • Weight (g)
    1080g
  • Version
    V2
