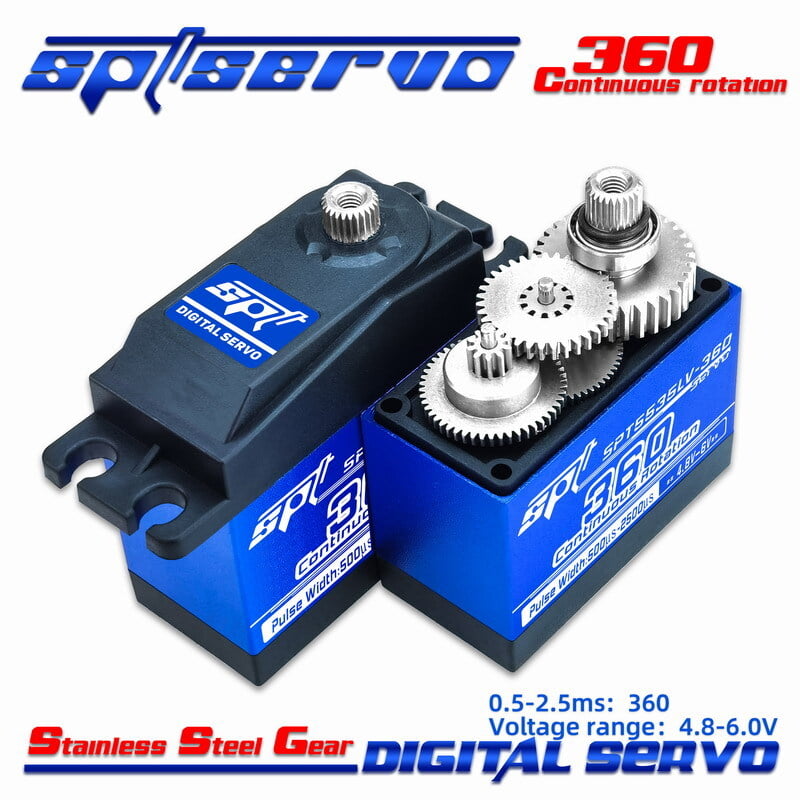

SPT SPT5535LV-360 Servo 35KG
£18.79
| Brand: | SPT Servo | Potentiometer: | No | ||
| Motor: | Core | Voltage Range: | 4.8V/6.0V | ||
| Neutral Point: | 1500μs | Signal Frequency: | 330Hz | ||
| PWM Voltage: | 3.3V-5.0V | PWM Voltage: | 3.3V-5.0V | ||
| Feedback Angle: | No | Operating Temperature: | -10℃-50℃ | ||
| Cycle: | 20ms | Dead band: | 4μs | ||
| Default Direction: | CCW | Yes / no Lock: | No Lock | ||
| Remote control Angle: | Linear Change/° | 500-2500μs Angle: | Continuous Rotation° / PWM | ||
| Quiescent Current: | 50mAh | Rated Current: | 1.2A | ||
| Blocking Current: | 2.5A | Weight / Dimensions: | 57g / 40.5*20*40.5mm | ||
| Output Gear: | Futaba 25T | Gear Material: | All Metal Gear | ||
| Shell Material: | Half Aluminum Shell | Bearing: | 2BB | ||
| Connector Wire Length: | 260MM | line Definition: | Brown-/Red+/Orange s | ||
| Operating Speed: |
| ||||
| Stall Torque: |
|
Part Number
SPT5535LV-360 Weight (grams):
57 Choose Quantity
Specifications
Specification
- Weight70g
- Length (mm)40.5
- Width (mm)20
- Height (mm)40.5
- Remote Control AngleLinear Change
- Output GearFutaba 25T
- Operating Speed (s/60°)0.16 (4.8V) / 0.14 (6.0V)
- Stall Torque (kg·cm)35
- Voltage Range4.8V/6.0V
- Gear MaterialAll Metal
- Bearing2BB
- MotorCore
- Blocking current (A)3.5
