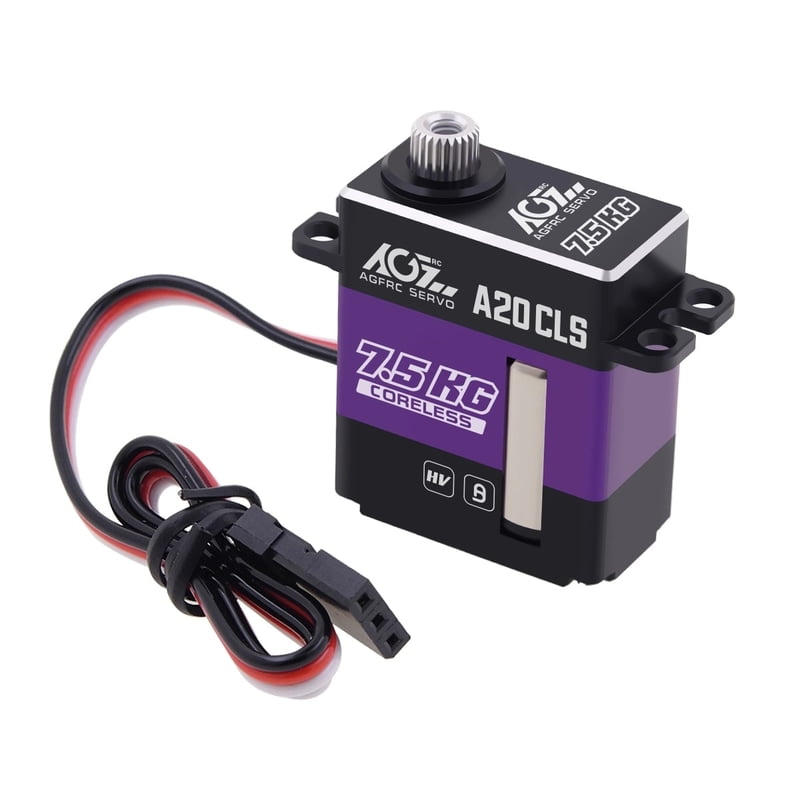

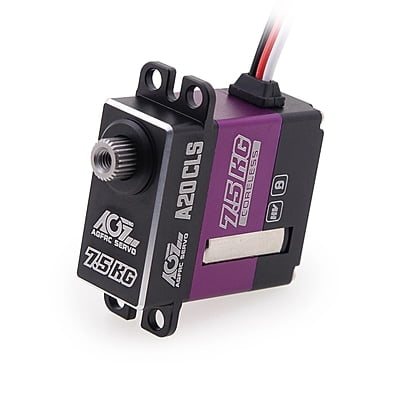

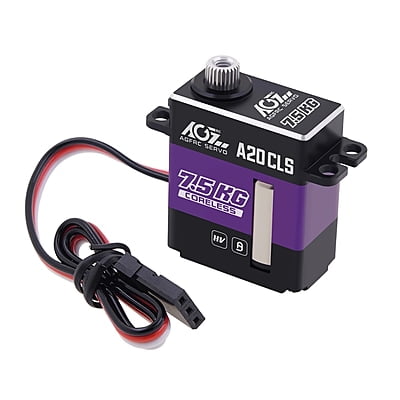

AGFRC Micro Digital Servo 0.080/7.5kg

AGFrc 7.5kg 0.08sec High Speed High Voltage Digital Coreless Full Metal Gear CNC Case Programmable Micro Wing Servo for Airplane Helicopter (A20CLS)

AGFrc A20CLS is 7.5kg high torque and 0.08sec fast speed programmable digital mini servo. Coreless motor provide high efficiency working and keep it in a affordable price. Double ball bearings and metal gears allow for compactness cooperation with servo motor. Light weight and ultra small body make it suitable for more application like 1/24 scale cars and small scale helicopters.

Feature

High Performance Digital Micro Servo

High Precision Metal Gears

High Quality Coreless Motor

Dual Ball Bearing

Full CNC Aluminium Housing

Ideal for 1/24 Scale RC Monster Car, SCX10.3，SCX24,  Airplane and 450 Class Helicopter Tail and Swashplate etc.

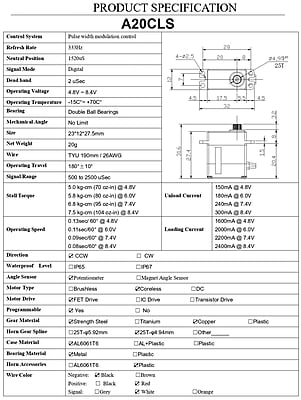

Specification

A20CLS

Operating Voltage: 4.8-8.4V

Operating speed: 0.11sec/60°@ 6.0V

Operating speed: 0.09sec/60°@ 7.4V

Operating speed: 0.08sec/60°@ 8.4V

Stall Torque: 5.8 kg-cm (80 oz-in) @ 6.0V

Stall Torque: 6.8 kg-cm (95 oz-in) @ 7.4V

Stall Torque: 7.5 kg-cm (104oz-in) @ 8.4V

Gear: Steel + Copper

Motor：Coreless

Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)

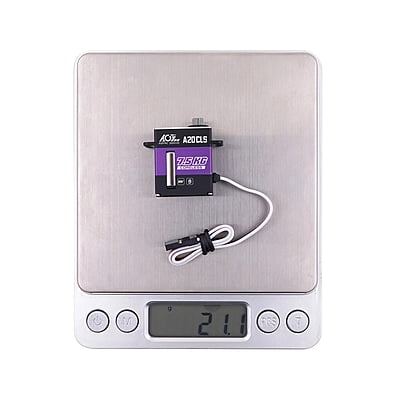

Weight: 21g

Connector Wire: TYU 190 mm 26AWG
