AGFRC 1/5 Scale Digital Servo 0.082/78kg (Special)

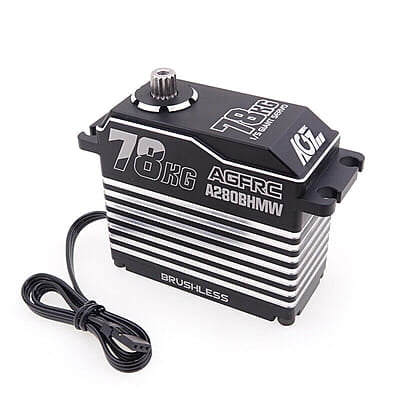

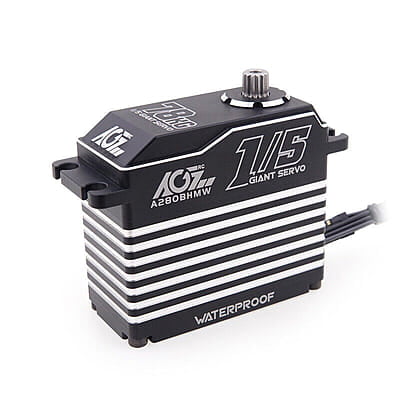

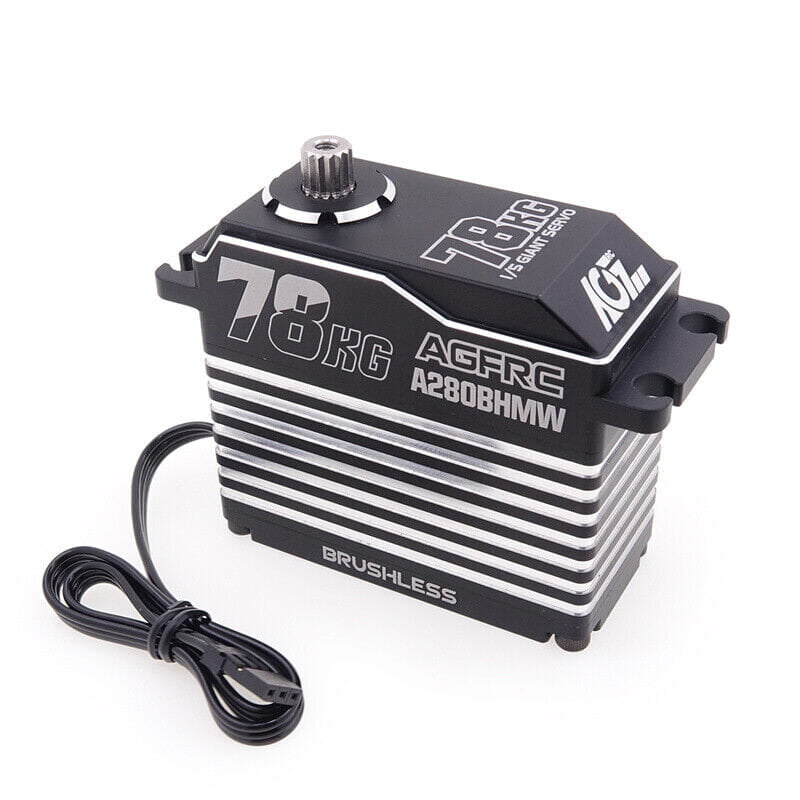

AGFRC A280BHMW 78KG 0.082Sec 5th Scale HV High Torque WP Brushless RC Racing Servo Large Aircraft Car Boat Airplanes Model

A280BHMW is a 2s version 5th scale servo. It combines long-life brushless motor with monster torque design takes the driving experience of large model enthusiasts to a new level. It is ideal for 1/5 Monster Truck, Buggy, Crawler, Large Airplanes, Robot Arm, etc. Whether you are traversing the jungle or climbing over sand dunes, 5 ball bearings and strengthening gear structure improve the crashworthiness and life of the servo.

When you cross the mountains and pass the charming stream, fully magnetic waterproof IP67 grade can let your model play in humid environment or rainy day. This A280BHMW is suitable for most 1/5 scale models, which require to use with 2s lipo battery. 78KG superb torque and 0.082Sec lightning fast speed, believe that your model can give full play to its handsome charm. Ultra light unique design with heat sink machining for medium and bottom case, so that the internal structure of the servo can absorb heat and smooth operation. Of course! In this era of rapid development, free choice is also a kind of happiness!

So how could we do without the programmable function? It is allow to be programmable via USB Programmer AGF-SP V3 now. In the near future it is available to be bluetooth APP programmable. Please don't hesitate to add a reliable new partner to your model!

Feature

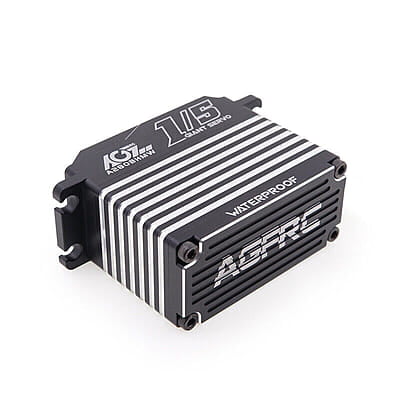

Heat Sink Aluminum Case

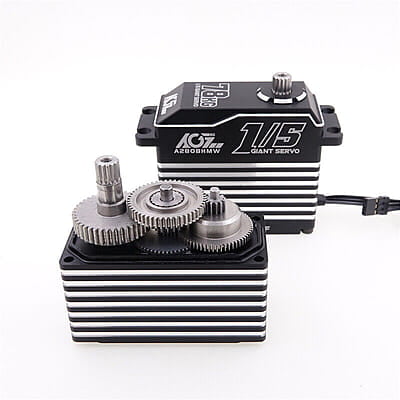

Extremely Strong Steel Gears

Super Reliable Five Ball Bearing

2S Lipo High Voltage Compatible

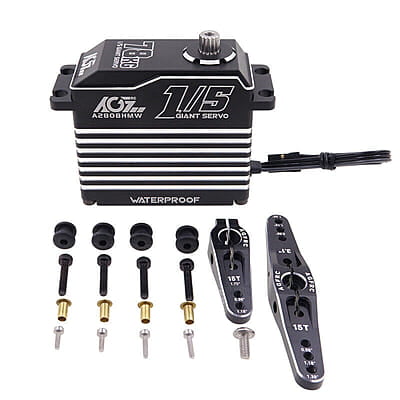

Associated 15T Aluminum Servo Horns

Magnetic Sensor Waterproof IP67

Available for Parameter Programmable (Please use with AGFRC USB Programmer AGF-SP V3).

Bluetooth APP Programmable (Still not available now)

Note:

1) "Servo Neutral" function of AGFRC A280 Series 5th scale servos are not available to program, please well known before you order it.

2) Sanwa compatible: A280 Series servos is compatible with Sanwa SHR Mode only.

First review for 5th Servo A280BHMW: https://www.youtube.com/watch?v=k5y7_zRzomQ

Note: Currently, USB programming cards are only applicable to Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit) system.

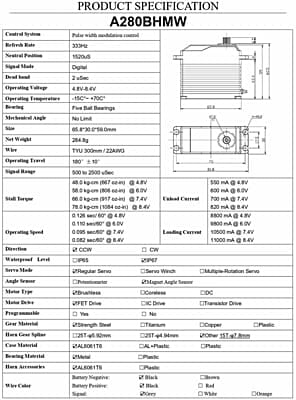

Specification

Item name: A280BHMW
Operating Voltage: 4.8-8.4V
Operating speed: 0.126 sec/60° @ 4.8V
Operating speed: 0.110 sec/60° @ 6.0V
Operating speed: 0.095 sec/60° @ 7.4V
Operating speed: 0.082 sec/60° @ 8.4V
Stall Torque: 48.0 kg-cm (667 oz-in) @ 4.8V
Stall Torque: 58.0 kg-cm (806 oz-in) @ 6.0V
Stall Torque: 66.0 kg-cm (917 oz-in) @ 7.4V
Stall Torque: 78.0 kg-cm (1084 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless

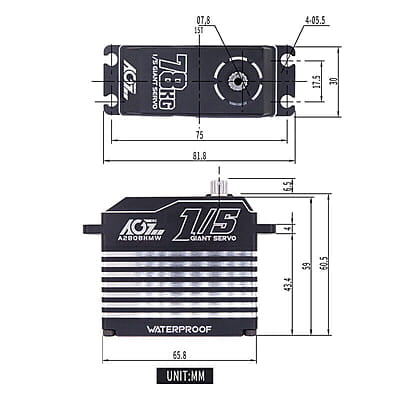

Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)

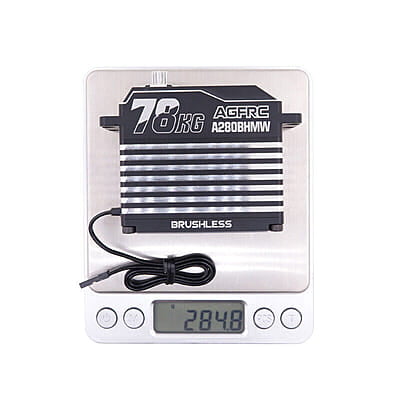

Weight: 284.8g
Connector Wire: TYU 300mm / 22AWG
